High sound absorption foldable acoustic partition wall
  • High sound absorption foldable acoustic partition wall
  • High sound absorption foldable acoustic partition wall
  • High sound absorption foldable acoustic partition wall
  • High sound absorption foldable acoustic partition wall
  • High sound absorption foldable acoustic partition wall
  • High sound absorption foldable acoustic partition wall

High sound absorption foldable acoustic partition wall

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

Main Application: Commercial Furniture

Types Of: Office Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Payment Type: T/T,Others

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners

Product Description


    movable room dividers walls is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The movable room dividers walls brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.

Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

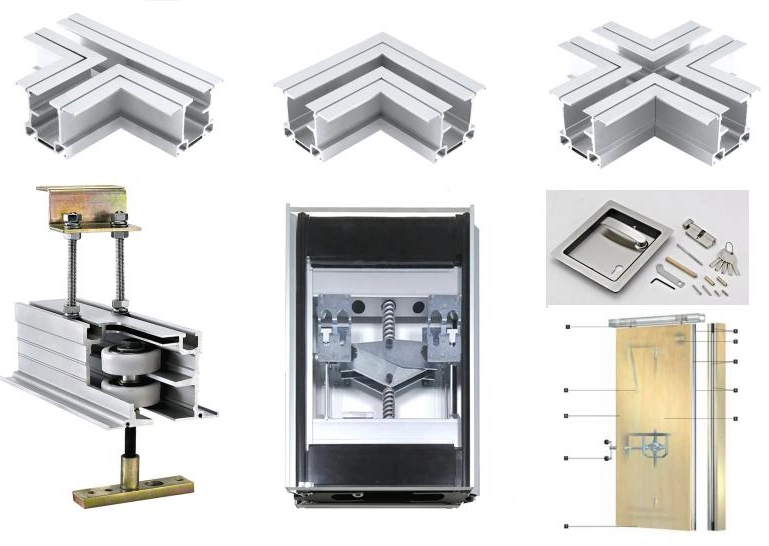

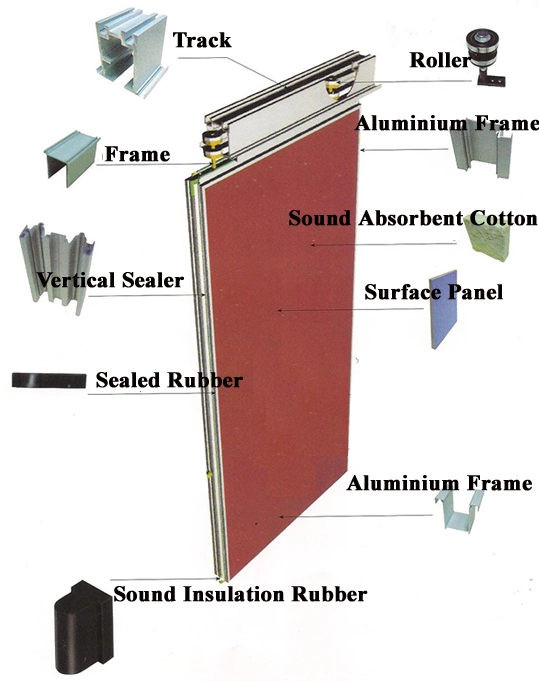

Product Structure


Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall
Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall

Ultra high 100 type

    Ultra-high movable partition walls dividers is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high movable partition walls dividers is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall

Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall

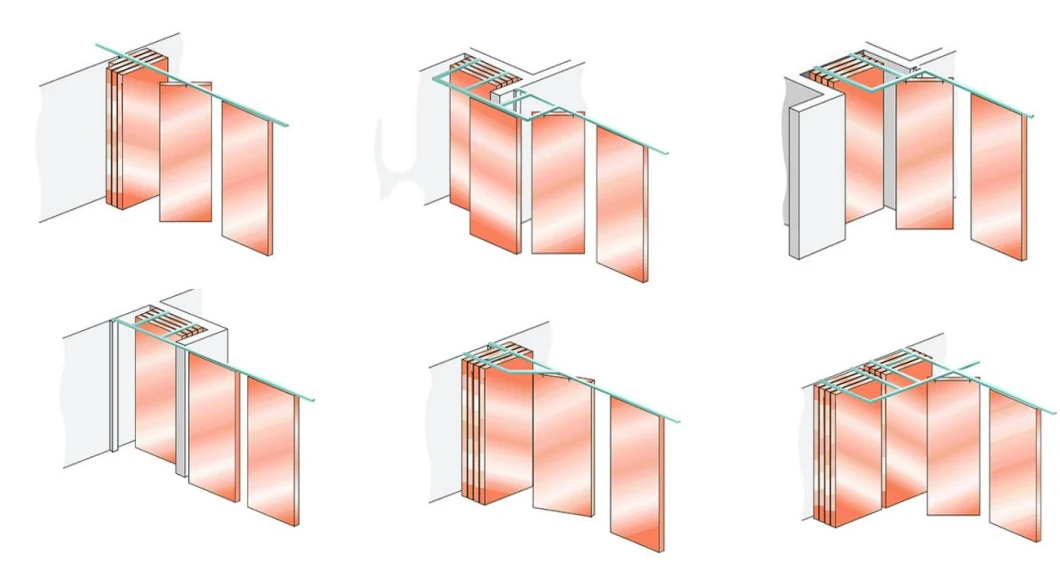

Stacking Ways

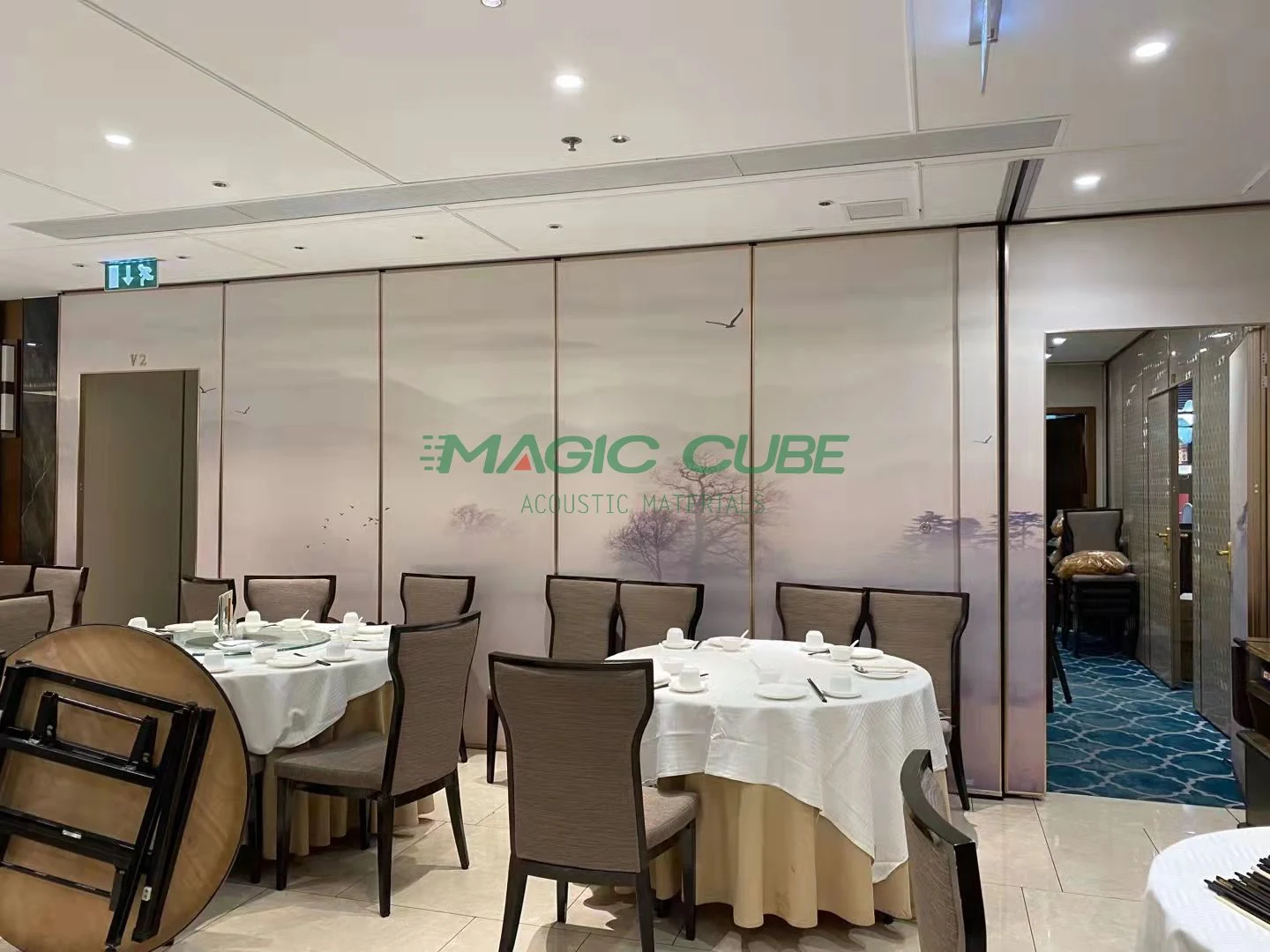

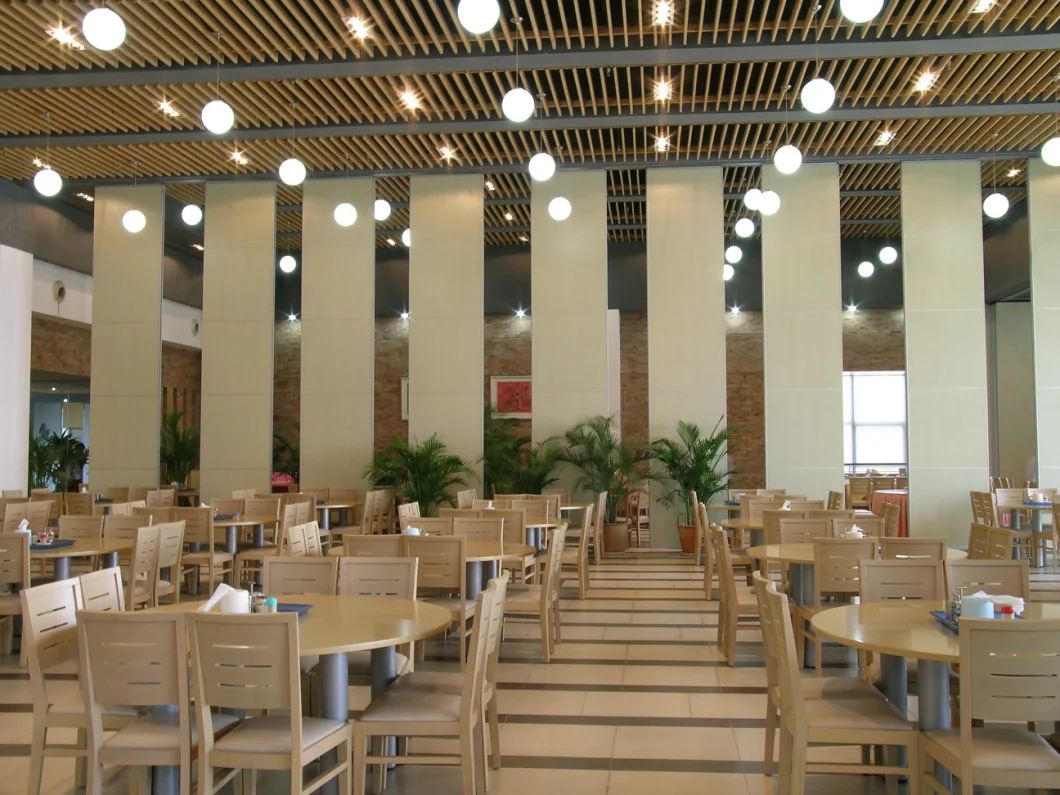

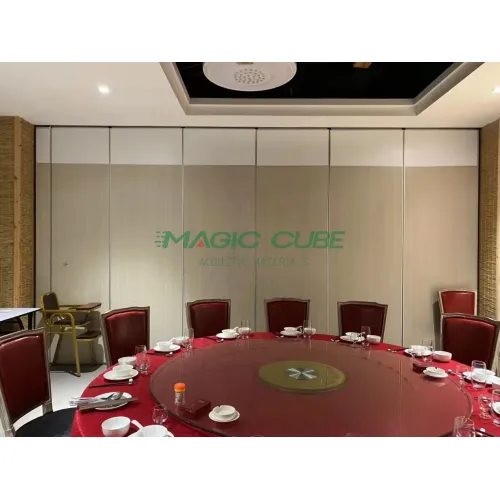

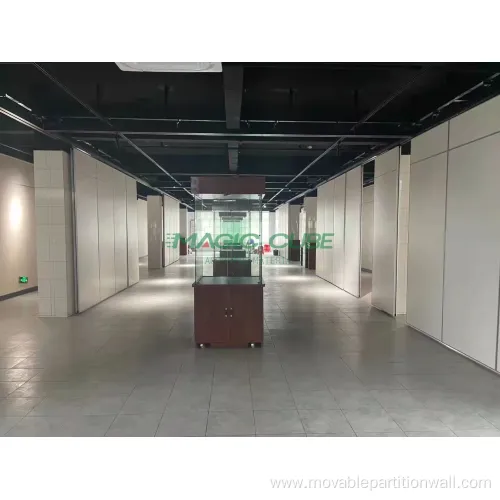

Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel HallApplications

Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall
Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall
Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall
Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall


Best Partition Walls Sliding Door Divider Sliding Door Partition Wall Dividers Wall Panels for Hotel Hall

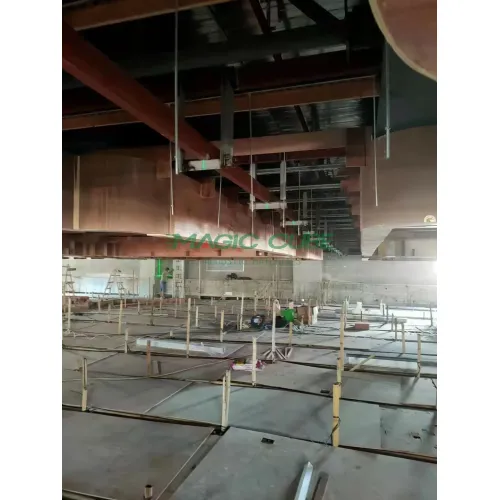

Construction process:



1) Install the track

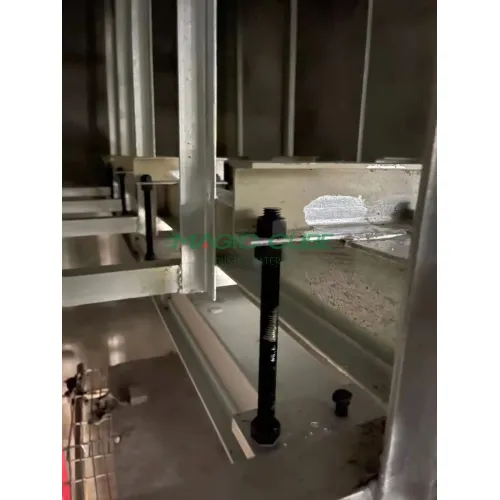

There are two kinds of track options for movable office partitions walls, one is a suspended track, and the other is a supporting track. The guide block used in the suspended track is called the suspension guide, and its fixing method is to install the pulley on the top surface of the partition fan, which is connected with the suspended track above. The size of the track and pulley must be selected according to the weight that can be carried. Light movable partition wall, the track is fixed on the wooden frame or steel frame along the top with wood screws or counterscrew. For heavy-duty movable partition walls, the track must be screwed or welded directly to the steel frame. The support guide of the support track is installed at the lower part of the partition, and forms the lower support point with the ground track. The track is fixed with expansion bolts and track embedded parts, and guide rails are also installed on the wooden frame along the top. The interaction force of the upper part and the lower part balances the load pressure brought by the movable partition wall to the ground and ceiling steel frame, so that the movable partition wall can enhance the durability.

Matters needing attention when installing the track: First, according to the specific conditions of the track, install the pulley or track in advance, and reserve the opening (usually 1/2 of the partition against the wall).

　　

2) Install the movable panel



According to the installation method, accurately draw the pulley line on each door panel, and then fix the pulley's fixing frame to the upper or lower tower of the  movable office partitions walls with screws; install the door panels into the track one by one in order, and adjust each door panel. , make sure they are all perpendicular to the ground. And all of them can be pushed, pulled and rotated flexibly, and finally each door panel is connected and fixed. Under normal circumstances, the adjacent door panels are connected by hinges.
