Office sound insulation movable acoustic partition
  • Office sound insulation movable acoustic partition
  • Office sound insulation movable acoustic partition
  • Office sound insulation movable acoustic partition
  • Office sound insulation movable acoustic partition

Office sound insulation movable acoustic partition

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

Main Application: Commercial Furniture

Types Of: Office Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Payment Type: T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners

Product Description


   operable panel partitions is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The operable panel partitions brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

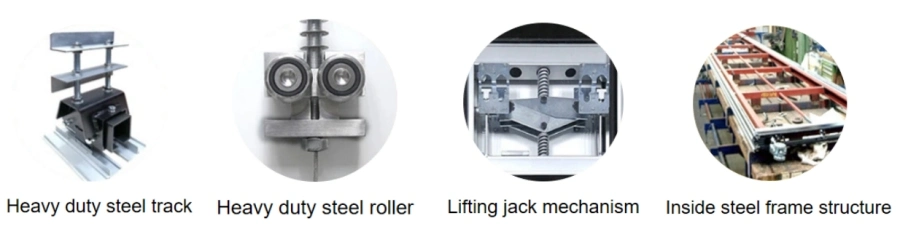

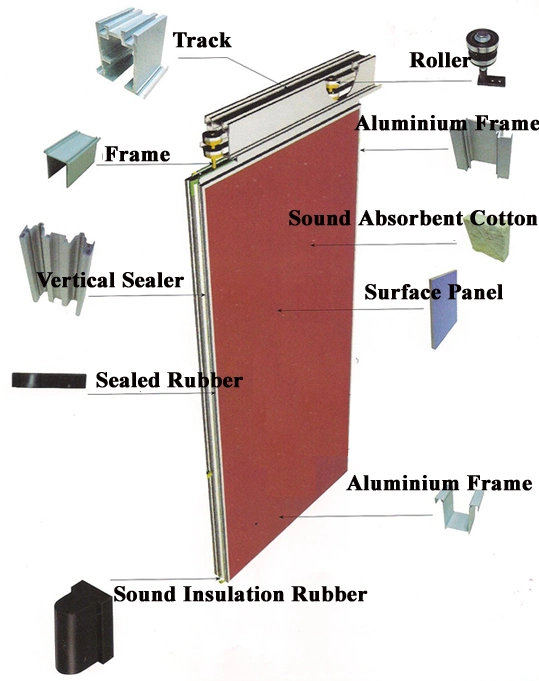

Product Structure


Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions
Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions

Ultra high 100 type

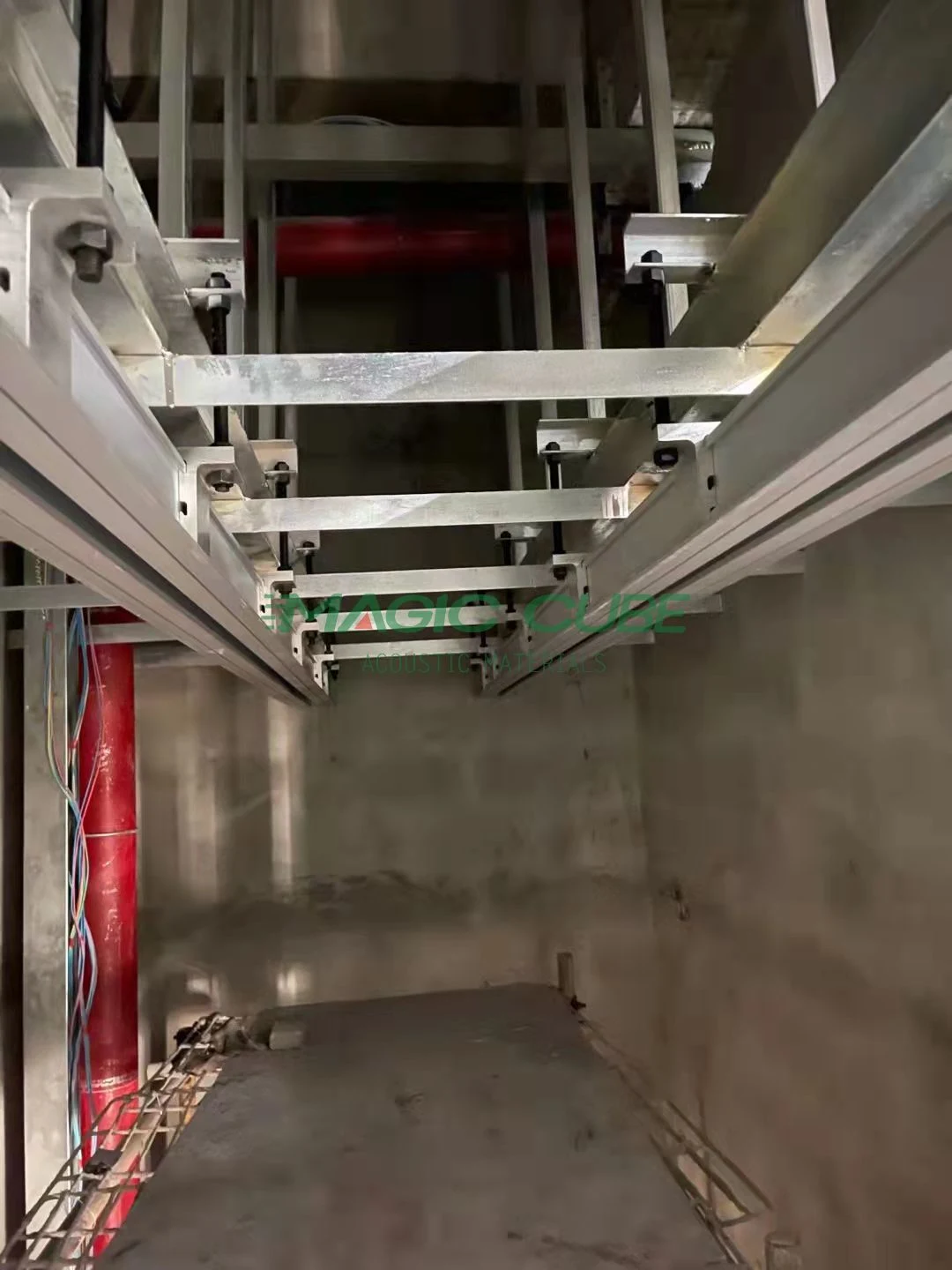

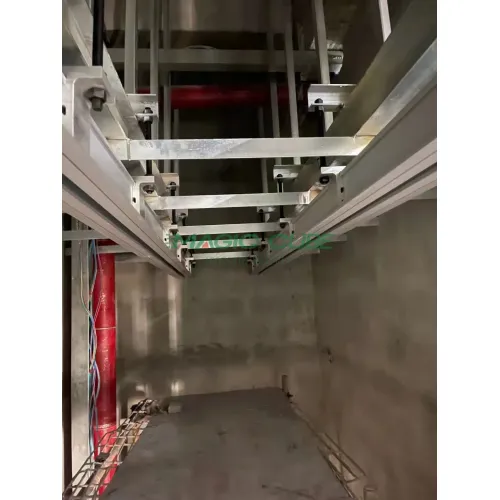

    Ultra-high folding acoustic partition system is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high folding acoustic partition system can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions

Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions

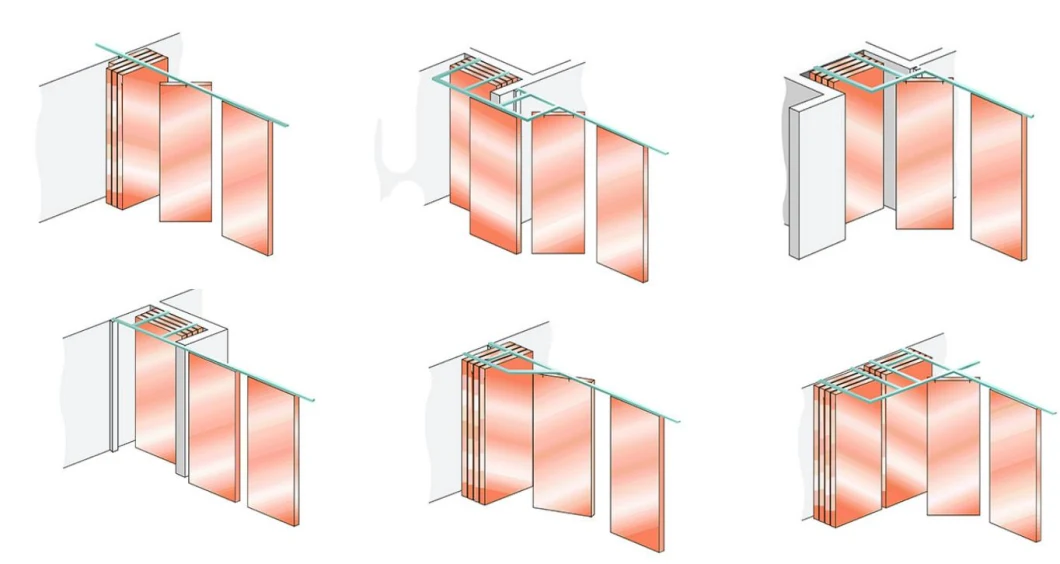

Stacking Ways

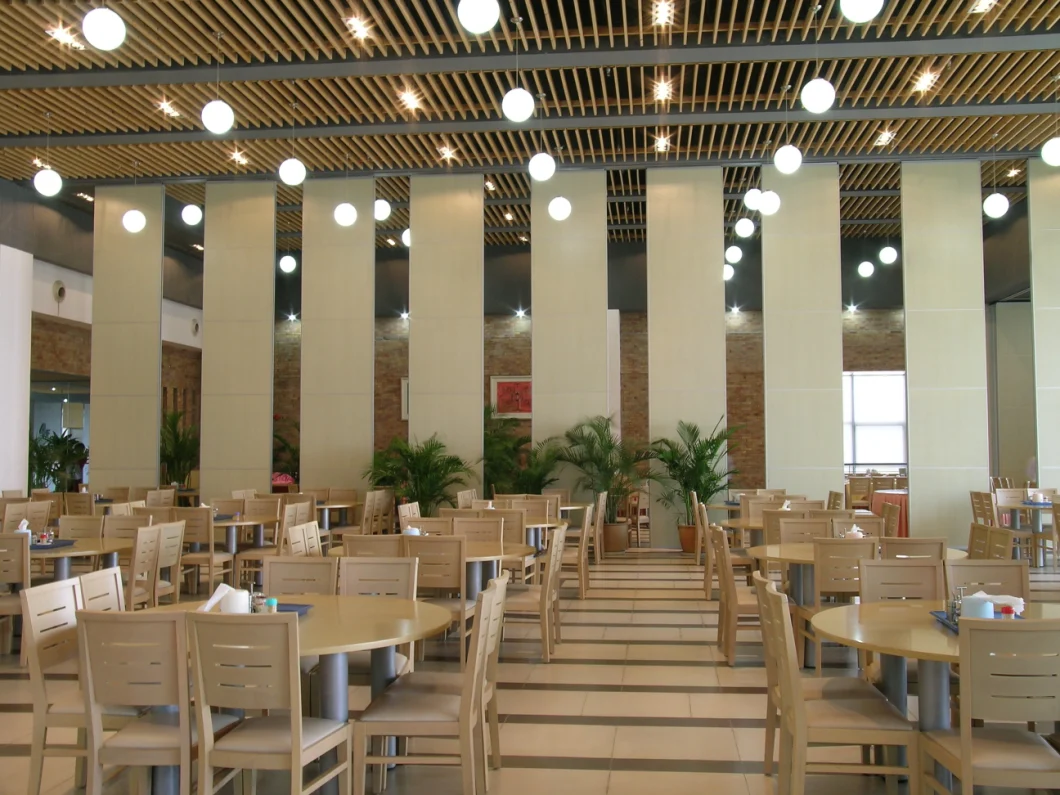

Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall PartitionsApplications

Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions
Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions
Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions
Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions


Wholesale High Strength Cheap Unique Movable Wood Partition Walls Movable Hall Partitions

The middle of the movable acoustic panels is made of Sound Insulation cotton and other materials, and the surrounding frame is made of aluminum alloy material, and the sound insulation effect is as high as 53dB coefficient, which can isolate the noise of ordinary speech.

The sound insulation coefficient of the partition comes from multiple directions, not only in the partition wall itself, but also in other links, as shown below:

1. Horizontal sound insulation

In order to achieve the best sound insulation effect, the structure of the upper and lower layers of sound insulation rubber is adopted. Using the mechanical principle of the jack, the double-layer rubber strip is tightly pressed on the track of the ceiling and the bottom of the partition fan to provide a high-stability movable acoustic panels.

2. Corner sound insulation

The use of specially made rubber for the corner components solves the technical problem of corner sealing; at the same time, this method also achieves superior stability and sound insulation.

3. Vertical sound insulation

All soundproof walls are made of particularly elastic vertical sealing sides, with concave and convex grooves closely matching to ensure the best closure and sound insulation effect.

4. Skeleton

The hanging structure based on the wall panels allows it to sway freely and freely. The metal hoops between the wall panels are closely combined with each other, which effectively blocks the transmission of sound. The partition door panel can be replaced as needed according to the interior design without destroying the entire partition wall panel.

5. Sound insulation materials

Additional sound insulation materials are sandwiched in the partition walls to achieve different sound insulation effects.

6. Operating the crank

Manual operation of the crank is required to control the expansion and contraction of the sound insulation strip. The flexibility of the diamond-shaped connection bayonet in the crank makes the crank not easy to slide, and has strong flexibility and stability.
