HomeProductsMovable Wallmodern colored solid waterproof decorative partition wall
modern colored solid waterproof decorative partition wall
  • modern colored solid waterproof decorative partition wall
  • modern colored solid waterproof decorative partition wall
  • modern colored solid waterproof decorative partition wall
  • modern colored solid waterproof decorative partition wall
  • modern colored solid waterproof decorative partition wall
  • modern colored solid waterproof decorative partition wall

modern colored solid waterproof decorative partition wall

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MagicCube

Warranty Service: 5 Years

After-sales Service: Online Technical Support, Return And Replacement

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hall, Gym, Mall, Office Building, Hotel

Design Style: Contemporary, Farmhouse, Rustic, Mid-Century Modern, Chinese, Traditional, Scandinavian, European, French, Modern, Postmodern, Asian, Transitional, Eclectic, Tropical

Place Of Origin: China

Model NO.: Movable Partitions

Type: Melamine MDF Panel, Fireproof PVC Board, Fabric

Application: Office, Hotel Banquet Hall, etc.

Main Material: Aluminum Frame and Track

Soundproof Mater: Rock Rool , Glass Wool

Soundproof Stc: 40dB-50dB

Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm

Stacking Way: Centre Partiting; Side Parking

Open Way: Sliding Partition

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: China

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Port: SHENZHEN

Payment Type: T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

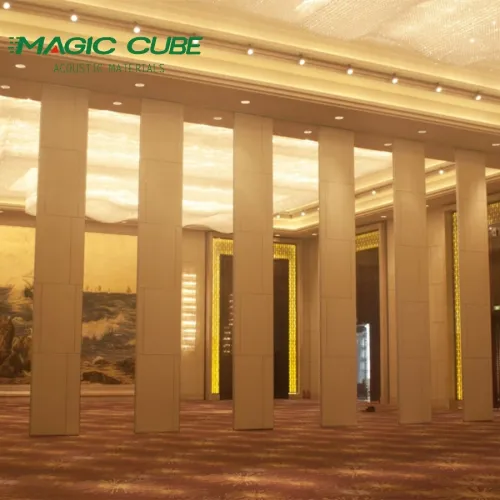

In the lobby of a large hotel, a large and spacious space cannot be used effectively except for large-scale events. Therefore, if it needs to be effectively used, a Movable Partition Wall must be used, because the Movable Partition Wall is practical and beautiful. For hotels that need to contact customers The place, the elegant and atmospheric movable partition wall is bright and pleasing to the eyes.



Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing


Product Structure


Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall
Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall

Ultra high 100 type

    Ultra-high Moveable Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Moveable Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall

Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall

Stacking Ways

Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or WallApplications

Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall
Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall
Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall
Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall


Exhibition Hall Commercial Room Sliding Partition Sliding Hanging Room Partitions for Ceiling or Wall

Precautions：

1. High-quality hanging wheels: The ultra-high type Moveable Partition Wall door panel is large and heavy. It must be a steel hanging wheel with a suitable type and bearing to ensure its safety.

2. Arc-shaped track: Ultra-high door panels generally require corners, and special customized arc-shaped corners need to be used. In order to ensure that the sliding door panel is smooth and easy to use, special customized steel elbows are required.

3. Hotel ultra-high-type partition storage: Ultra-high-type Moveable Partition Wall generally have storage rooms, and the panels need to be tilted during storage, so that it is easy to pick and place next time.

Storage method of ultra-high movable partition: The ultra-high movable partition wall generally has a storage room, which needs to be tilted for storage, which is convenient for next use and convenient access.

4. Regarding the storage room: The storage room should centrally store the door panels, and the bearing capacity is large, so special reinforcement is required when welding the rails to enhance safety.



Installation of movable partition wall

1. Before installing the partition, check the track parts according to the drawings to assemble the track in order.

2. Mark the track lines and place the brackets at specific locations.

3. The installation of the movable partition wall track should be against the ceiling.

4. Repeatedly check whether the movable partition wall is still firmly fixed on the track. The rails and brackets only need to be stored loosely in the storage area, which makes it easier to move the brackets and plates to other places.

Installation of movable partition wall matters 2

1. The movable partition door panel is hung on the track, and the escape exit track can be removed without rebuilding the crane.

2. The escape and exit tracks must be connected with special-made bracket tracks.

3. When installing the track, the construction can only be started according to the latest accurate data measured.

Product Categories : Movable Wall
