Model No.: MA-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement, Other
Engineering Solution Capability: Total Solution For Projects, Others
Application Scenario: Hotel, Mall, Workshop, Gym, Home Office
Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Asian, Farmhouse
Place Of Origin: China
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC Board, Fabric
Application: Office, Hotel Banquet Hall, etc.
Main Material: Aluminum Frame and Track
Soundproof Mater: Rock Rool , Glass Wool
Soundproof Stc: 40dB-50dB
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Stacking Way: Centre Partiting; Side Parking
Open Way: Sliding Partition
Ransport Package: Carton Paper Packaging, MDF Batten Cover Corners
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANGZHOU
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
The Safe And Sound Insulation can be up to 16 meters, and the ultra-high movable partition wall brings a lot of convenience to people's work. The raw material of the wood board can choose MDF, melamine board and flame retardant plywood as the board. Due to the large volume of the ultra-high Sound Insulation For Walls , in order to avoid the damage of the partition wall door panel during transportation, it is generally difficult to install the ultra-high movable partition wall by splicing it on site.
Specifications
Type | 65 type, 80 type, 100 type, ultra high 100 type. |
Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
Density | 28~32kg/m² |
STC | 40db-50db |
Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
Panel Suspension | Top hunge system without the need for a floor track. |
Panel Width | Each panel 600mm-1200mm. |
Track | Aluminum OR Steel Track |
Roller on panel | Single or double roller. |
Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
Module | 700mm - 1200mm maximum. |
Panel stacking | Numerous panel stacking options for complete flexibility. |
Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high Sound Insulation For Walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Safe And Sound Insulation can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications

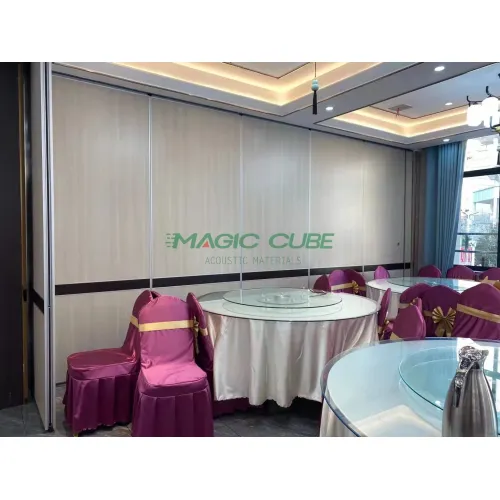

Partitions are often used in hotels because the hotel Sound Barrier Insulation, hotel conference rooms and restaurants in the hotel lobby are flexible and easy to operate in order to create multiple independent small spaces. favorite. Take the hotel conference room as an example. The hotel conference room needs to meet the needs of enterprises from all walks of life. The number of people in the conference room is as small as 20 or 30, and the maximum number is hundreds. The number of people is very different, and it is difficult to carry out work smoothly. The emergence of ultra-high movable partition walls solves this problem, so that we can use the space of the conference room more efficiently.
The reason why the hotel conference room can create the space required by various groups of people, the movable partition wall has the outstanding characteristics compared with other partition walls:
1. Compared with the physical partition wall, the Sound Barrier Insulation can be pushed and pulled to expand or store, dividing the overall space into a variety of small spaces, even in large conference rooms. In this way, there is no need to waste time and energy to rationally arrange the space. Only one space can be divided into multiple small spaces, and the tables and chairs used for the meeting can be arranged to meet the needs of different passenger flows.
2. A good conference room must have sound insulation. Meeting rooms are needed for decision-making in life and society, so its privacy should be very good. The sound insulation coefficient of the movable partition wall is very high, which can isolate 50dB of noise at most, filtering outdoor noise and blocking external sounds. The intervention will not affect the efficiency of the meeting in the conference room. It can not only protect the privacy of the meeting but also ensure the quiet environment.
Product Categories : Sound Insulation
