Decorative mdf sliding divider

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Main ApplicationCommercial Furniture

Types OfOffice Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce)Y

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners

Product Description

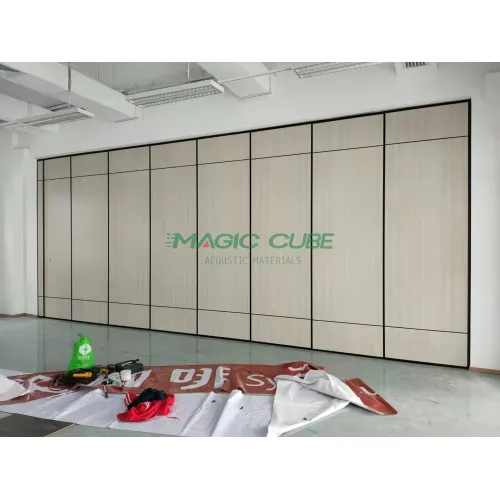

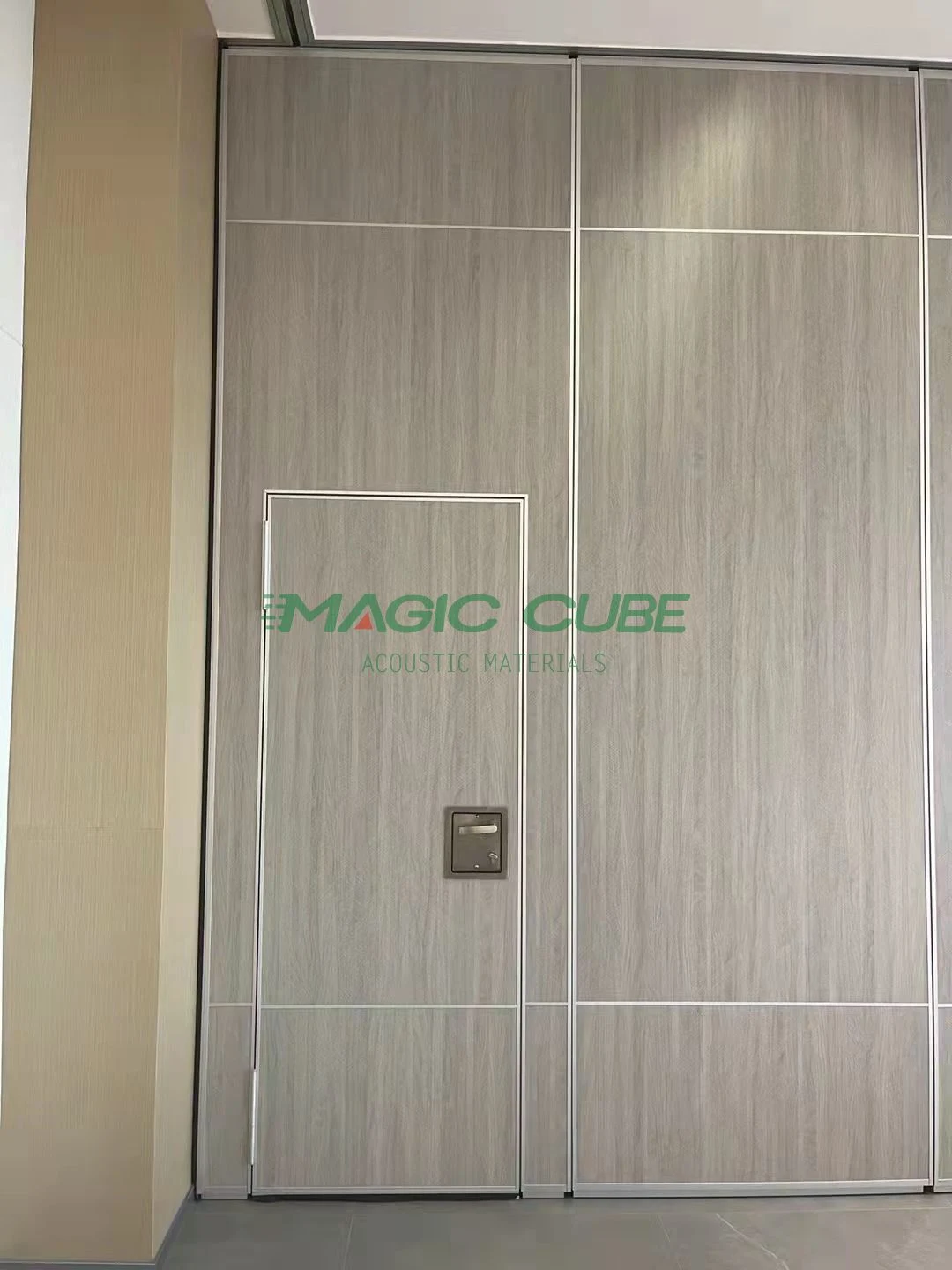

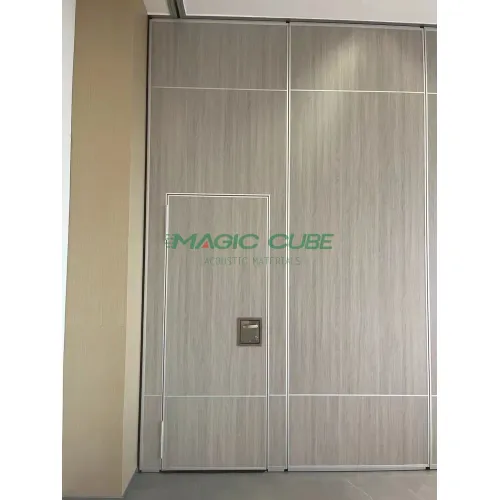

   partition sliding wall is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The partition sliding wall brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing


Product Structure


Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers
Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers

Ultra high 100 type

    Ultra-high sliding wooden partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high sliding wooden partition wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers

Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers

Stacking Ways

Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern DividersApplications

Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers
Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers
Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers
Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers


Customization Sliding Wall Panel Divider Sliding Partition Dividers Walls Movable Panel Modern Dividers

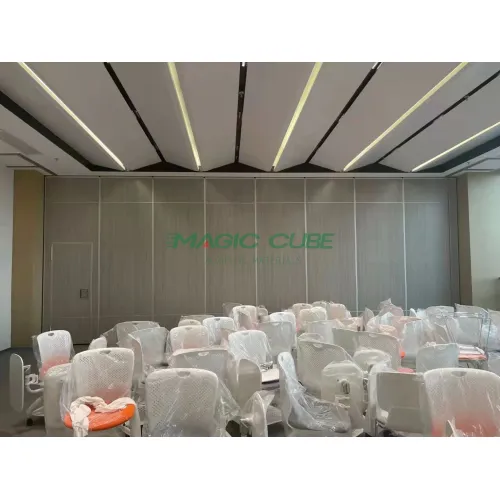

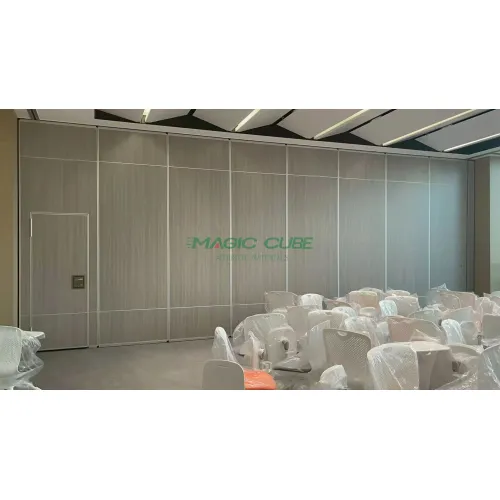

The commercial dividers sliding of the banquet hall is convenient and flexible, which can effectively divide a large space into two or even more than two small spaces, which is convenient to use to meet various space needs. Because the movable partition wall of the hotel has the ability to change the size of the space at any time, the function of the banquet hall is getting stronger and stronger. This ability can make the banquet hall more effective. Our movable partition wall is customized according to the situation on site. It is necessary to accurately measure the height and width of the venue, obtain accurate data and design the movable partition wall according to the customer's style requirements. plan. The distance from the ground to the ceiling is the height of the partition wall, and the width is determined according to the position of the partition to be partitioned. Different from the traditional screen partition, this kind of movable partition is generally on the ground or wearing pulleys, or it is self-propelled. It can be used as a beautiful screen or as a sealed Sound Insulation wall, because the more prominent advantages of movable partition walls have gradually replaced traditional mobile screens. The folding partition can also be called a folding screen, because it can be folded, moved and pushed and pulled, hence the name. Because the movable partition wall is mainly in the form of hanging and hanging, it will not occupy the ground space, and there is no need to install tracks on the floor.

The benefits of commercial dividers sliding:

1. The general movable partition wall is mainly made of melamine board into a modular wall.

2. It has super operability and does not require too many complicated steps. No matter who it is, it can be used by just looking at it. It is easy to disassemble and install. In addition, the biggest advantage is that it can be freely retracted and stored, which changes the space layout. , provides a very beautiful interior decoration.

Product Categories : Sound Insulation
