anti-fire wooden acoustic movable wall on wheels



Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard

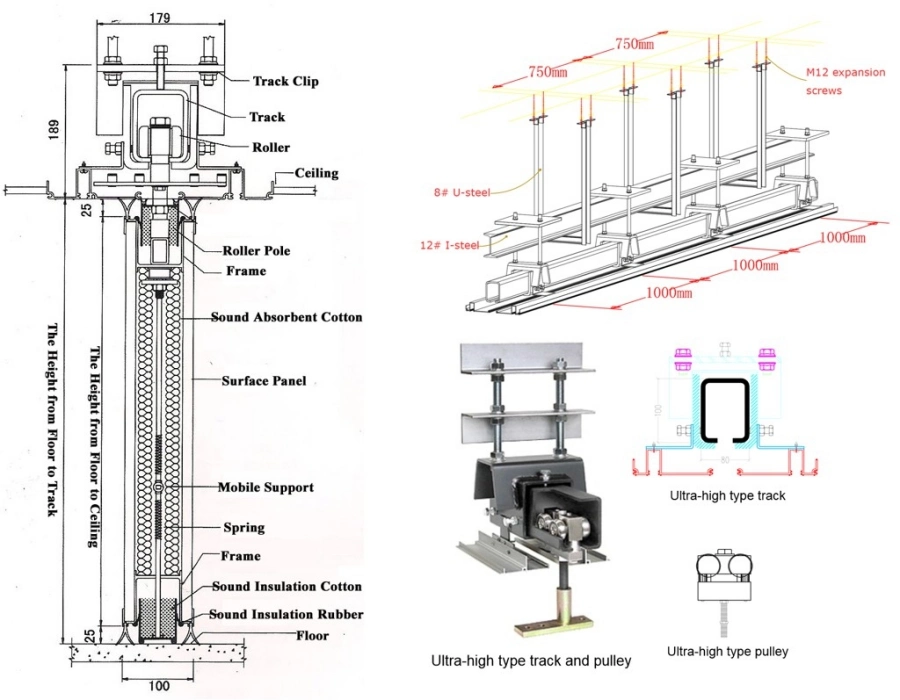

Ultra high 100 type

    Ultra-high Soundproof Movable Walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Soundproof Movable Walls can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

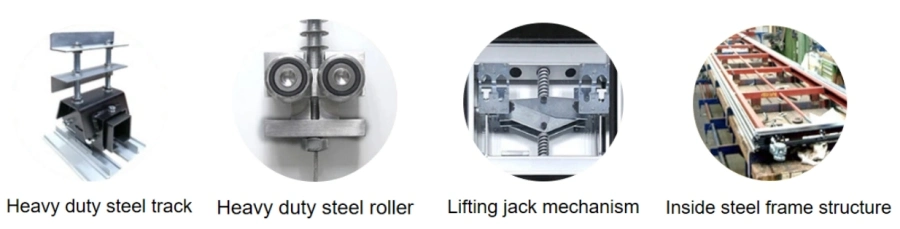

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

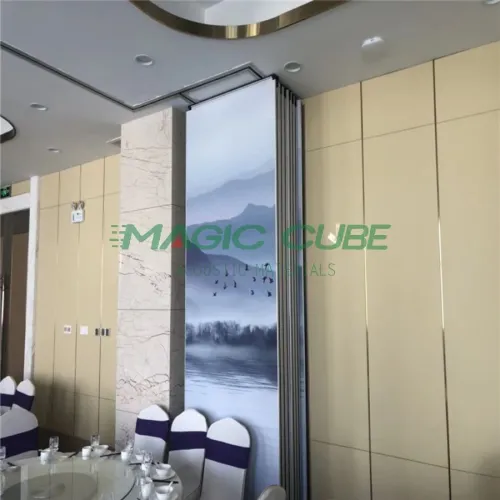

Stacking Ways

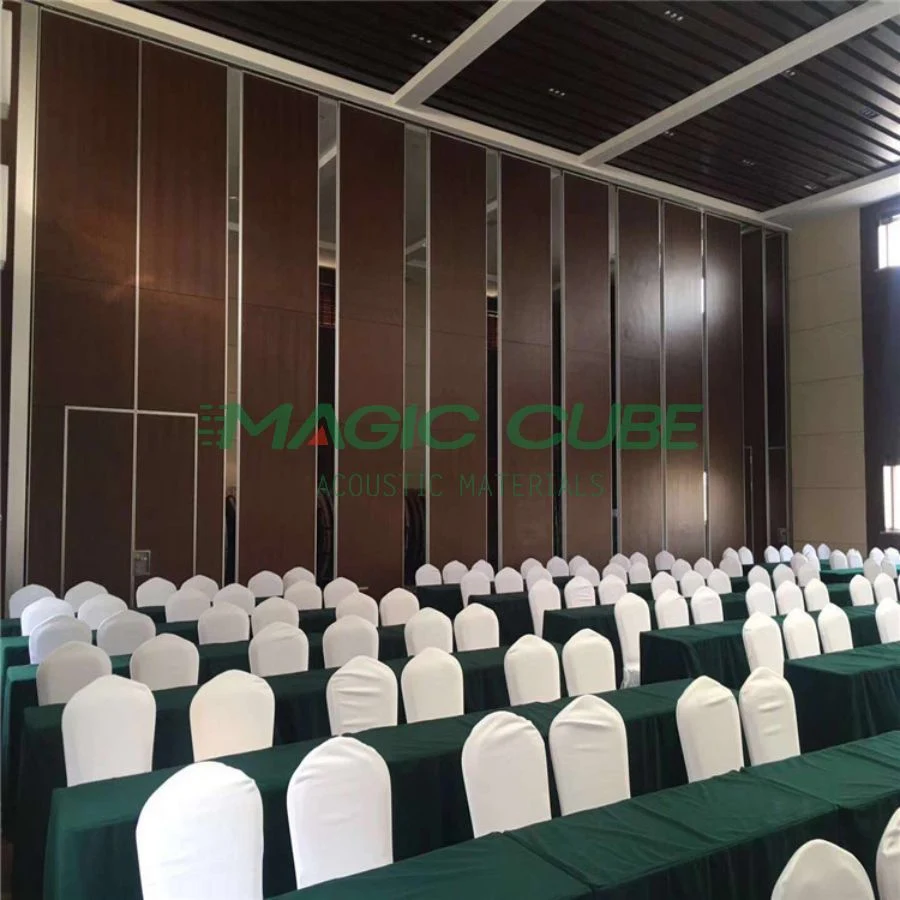

Applications

The specific details of ultra-high movable partition products

Ultra-high screen is a kind of movable screen, which can also be called the maximum heavy-duty ultra-high temperature screen of 16 meters. It is also very easy to push and pull the ultra-high type movable partition. Used in large-scale banquet events, the banquet hall often becomes a veritable "wall" in the conference hall. The partitions of this series of activities are intermittent, used in restaurants, training rooms and small conference rooms in modern hotels. It can also be used as a frequently used board for stickers or Hanging paintings can also be used as ordinary paintings or hanging paintings. Various open doors can also promote various mobile office exhibitions, which play a role in preventing theft.

The applicable height of space separation is 7 meters to 16 meters, and the Sound Insulation effect of high compartments is as high as 53 decibels. It can be used in large multi-purpose halls, hotel banquet halls, conference and exhibition centers, gymnasiums and auditoriums and other tall places.

The ultra-high movable partition walls are all surrounded by double-layer aluminum alloy frames. It is necessary to adopt various methods such as oxidation and electrophoresis according to customer requirements.

The heavy-duty follow-rail used for ultra-high movable partitions, the number of times the rolling suspension wheel of the model can slide up to 100,000 times, has good technology in the partition industry. The applicable height is 8m-17m. The maximum load-bearing of the rail is 1250kg/m, and the maximum sound insulation coefficient of the partition wall is 60dB. Generally, it can be widely used in airports, large exhibition halls and other large places.

The commonly used hotel movable partitions have a high enough sound insulation coefficient, but in order to meet customers with stronger sound insulation effects, we need to strengthen the sound insulation materials when making partitions.

Ways to improve sound insulation

If a partition product wants to obtain high-quality sound insulation, it cannot just focus on the improvement of thickness. Because it also needs to combine the density of the material, the sound absorption energy, the method of sound insulation treatment and the degree of fit. Mainly a few more points:

1. The material of the Ultra-high Partition Wall sound insulation cotton used in the hotel banquet hall needs to have strong sound absorption performance, moderate density, and absorb audio at the reflection angle to reduce the decibel effect;

2. The Ultra-High Partition Wall profiles must be precise in technology, horizontal and vertical, without special protrusions and asymmetry, to ensure that the movable partition can ensure the airtightness when combining partition walls, so as to achieve better noise reduction effect.

3. The material inside the movable clapboard is made of double-layer sound insulation cotton, which is a better sound insulation material, which can effectively isolate noises such as normal speech and humming.

4. The internal materials should be precisely matched, and the sound insulation material should preferably be taken from pure natural materials. Because it is a sealed space, more attention should be paid to the internal materials.

5. For those who need to pursue higher air tightness, in addition to the movable partition, it is necessary to set up soundproof curtains or other soundproof furniture;

6. The movable partition is not made of ordinary medium-density board, and needs to use sound-absorbing board or special flame-retardant cloth.
