Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Main Application: Commercial Furniture
Types Of: Office Furniture
Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW

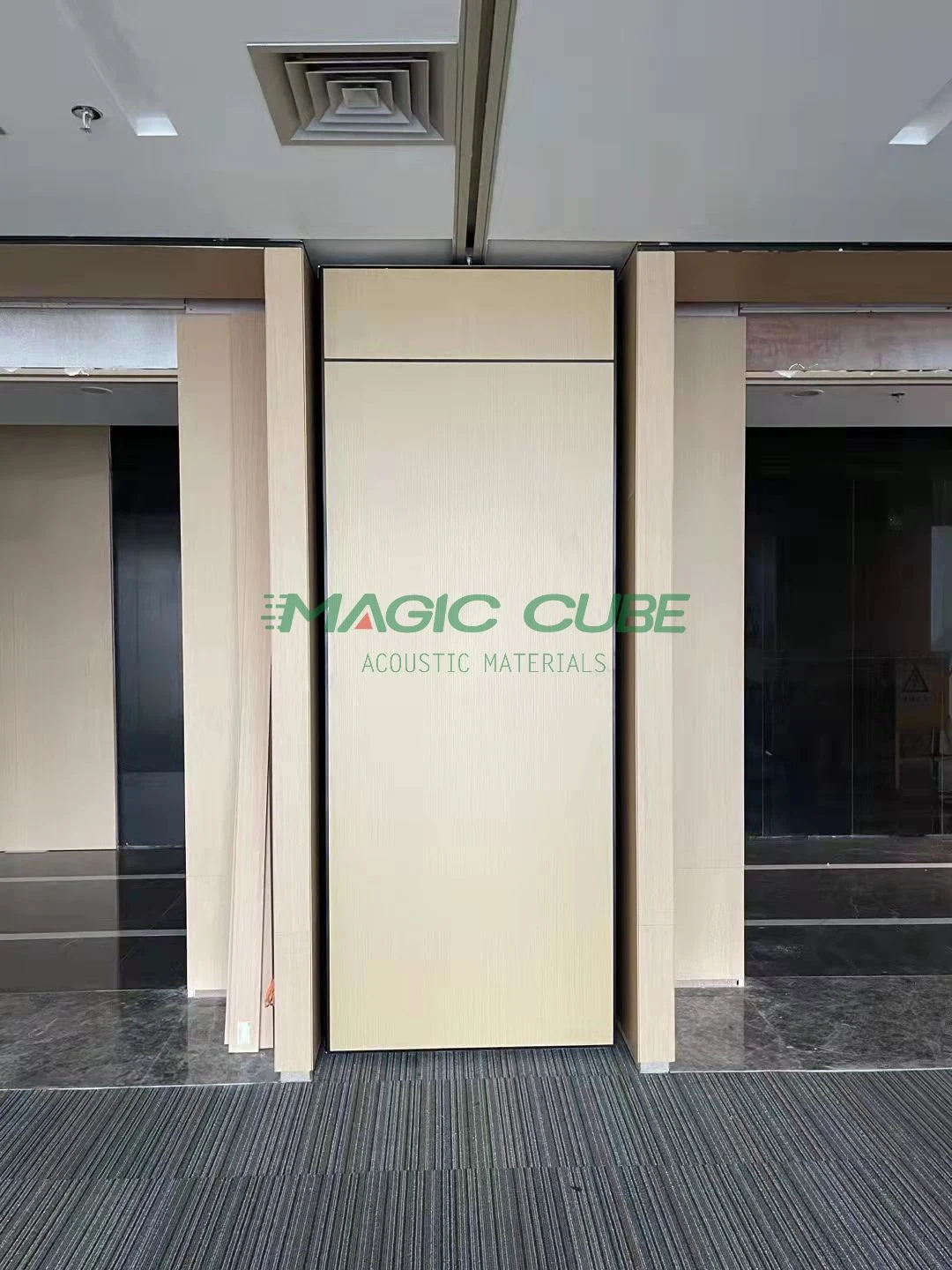

Soundproof Movable Walls is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The soundproof movable walls brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.
Specifications
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high movable panels is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high movable panels can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
How to design the partition wall panels ?
Design principle of partition wall panels : movable partition wall is a non-load-bearing wall, so its shape is highly variable and has a high degree of freedom. It can change any shape without being restricted, so it is more suitable for any space transformation. When designing a space, we Special attention should be paid to the combination of partition and space, as well as the uniformity of height and length. Only when the consistency becomes stronger can it be enough to create an ideal movable partition wall. Otherwise only you make a Poor spatial effect at last.
1. The customer has finished telling his own requirements, and according to the customer's needs, he draws up the best design plan and quotes.
2. Let the customer determine the design plan and quotation.
3. The factory strictly controls every link of the production line, and makes the parts of each part of the partition and sends them to the installation site.

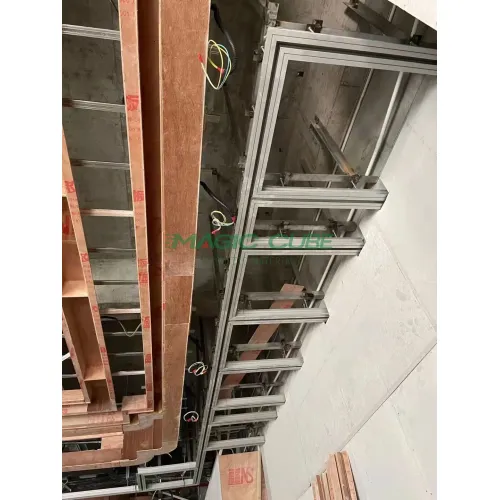

4. The technicians will place the lines according to the drawings, and then confirm the installation track of the ceiling with the customer.
5. After the track is installed, a technician will measure the height and width (headroom size) of the site and let the customer confirm it.
6. Professional designers make door panels according to customer needs, venue style and venue size.
7. The factory makes the door panel according to the designed drawings.
8. After strict quality inspection by the quality inspection department in the factory, the door panel will be sent to the scene immediately after reaching the standard.
9. Let the customer conduct a sampling inspection on site, and the door panel can be installed after approval.
10. Train customers to skillfully use active partitions.
Product Categories : Ultra-high Partition Wall
