Model No.: MQ-PARTITION
Main Application: Commercial Furniture
Types Of: Office Furniture
Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y
Movable partition walls are now inseparable from people's lives. Whether it is home use, office use, or hotels and other spaces that require sound processing, they are all suitable for installing movable partition walls to meet people's needs for multi-functional use of space. The movable partition wall needs professionals to install, but in daily use, only one person can easily push and pull the Movable Divider Wall door panel, which greatly saves manpower and material resources. Because the high-quality characteristics of partition walls can be used for a long time, the price of Movable Divider Wall is much higher than that of other sound-absorbing materials, so the price of movable partition walls is very low.
Specifications
Type | 65 type, 80 type, 100 type, ultra high 100 type. |
Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
Density | 28~32kg/m² |
STC | 40db-50db |
Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
Panel Suspension | Top hunge system without the need for a floor track. |
Panel Width | Each panel 600mm-1200mm. |
Track | Aluminum OR Steel Track |
Roller on panel | Single or double roller. |
Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
Module | 700mm - 1200mm maximum. |
Panel stacking | Numerous panel stacking options for complete flexibility. |
Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high Soundproof Movable Walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type Soundproof Movable Walls is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications

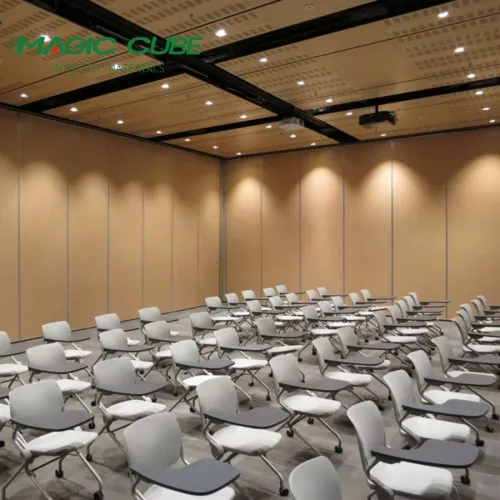

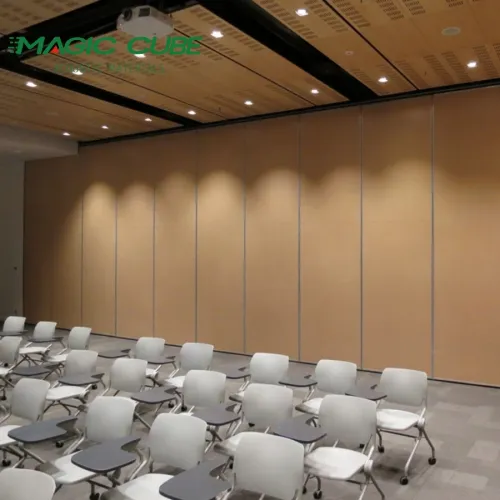

Ultra-high Partition Wall are often used in hotels because the hotel banquet halls, hotel conference rooms and restaurants in the hotel lobby are flexible and easy to operate in order to create multiple independent small spaces. favorite. Take the hotel conference room as an example. The hotel conference room needs to meet the needs of enterprises from all walks of life. The number of people in the conference room is as small as 20 or 30, and the maximum number is hundreds. The number of people is very different, and it is difficult to carry out work smoothly. The emergence of ultra-high movable partition walls solves this problem, so that we can use the space of the conference room more efficiently.
The reason why the hotel conference room can create the space required by various groups of people, the movable partition wall has the outstanding characteristics compared with other Ultra-High Partition Wall:
1. Compared with the physical partition wall, the mobile partition wall can be pushed and pulled to expand or store, dividing the overall space into a variety of small spaces, even in large conference rooms. In this way, there is no need to waste time and energy to rationally arrange the space. Only one space can be divided into multiple small spaces, and the tables and chairs used for the meeting can be arranged to meet the needs of different passenger flows.
2. A good conference room must have Sound Insulation. Meeting rooms are needed for decision-making in life and society, so its privacy should be very good. The sound insulation coefficient of the movable partition wall is very high, which can isolate 50dB of noise at most, filtering outdoor noise and blocking external sounds. The intervention will not affect the efficiency of the meeting in the conference room. It can not only protect the privacy of the meeting but also ensure the quiet environment.
3. The moving partition wall is not troublesome at all. It relies on rails for push-pull movement, and it is effortless for a person to manually move the partition wall. The movable partition wall has a good thermal insulation and fireproof function because the upper and lower battens should be opened after the partition is unfolded, so that the partition wall can firmly withstand the ceiling and the ground.
4. The mobile partition supports customer customization, and the customer chooses the finish suitable for the style of the installation site. There are many choices for its customization business. The mobile partition wall has both decorative and functional characteristics, so it can be customized for the conference room. Partition walls are obviously a good choice.
