melamine Sliding Movable partition

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement, Other

Engineering Solution CapabilityTotal Solution For Projects, Others

Application ScenarioHotel, Hall, Home Bar, Office Building, Home Office, Workshop

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Farmhouse, Asian, Tropical

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric

ApplicationOffice, Hotel Banquet Hall, etc.

Main MaterialAluminum Frame and Track

Width750mm~2000mm

Sound Insulation (dB)35-50dB

Door Panel WeightMax 750kg/Panel

Motor PowerAC150V~250V

Retractable Range Of Top/Bottom Seals25mm

Pro10000 Square Meters Per Yearduction Capacity

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortSHENZHEN,GUANGZHOU

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

The installation process of the Soundproof Movable Walls:

1. Positioning measurement. When installing, professionals will measure according to the indoor floor plan, release the control line, and then guide the position line to the roof, and then finalize the internal marking and construction details.

2. Installation of steel structure and fixed parts. The steel structure is a load-bearing member linking the ceiling and the track, it is very important, and even involves the safety of the entire partition system. In this step, it is necessary to weld the fixed parts to death according to the requirements of the construction drawing, and at the same time carry out anti-rust treatment on all the metal parts.

Install the track. The fixing method of the suspended track is to install a pulley on the top surface of the partition wall door panel and connect it with the upper suspended track. The track of the light Soundproof Movable Walls is fixed on the top plank or the steel frame with wood screws or counterscrew. The heavy-duty movable partition wall is fixed on the steel frame by screw or world welding.





Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

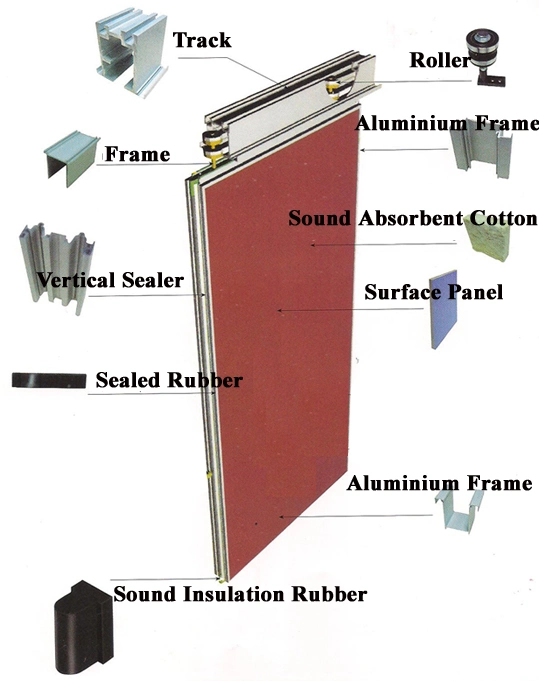

Product Structure


Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium
Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium

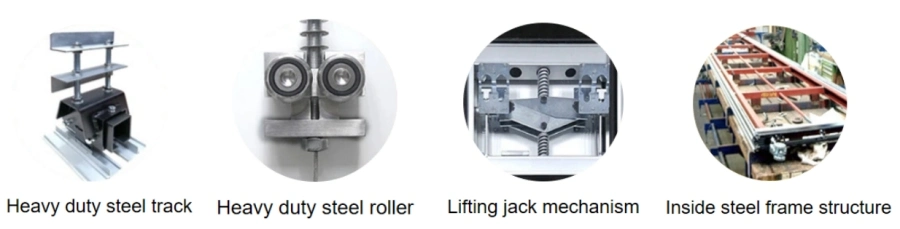

Ultra high 100 type

 Ultra-high Partition Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Ultra-High Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium

Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium

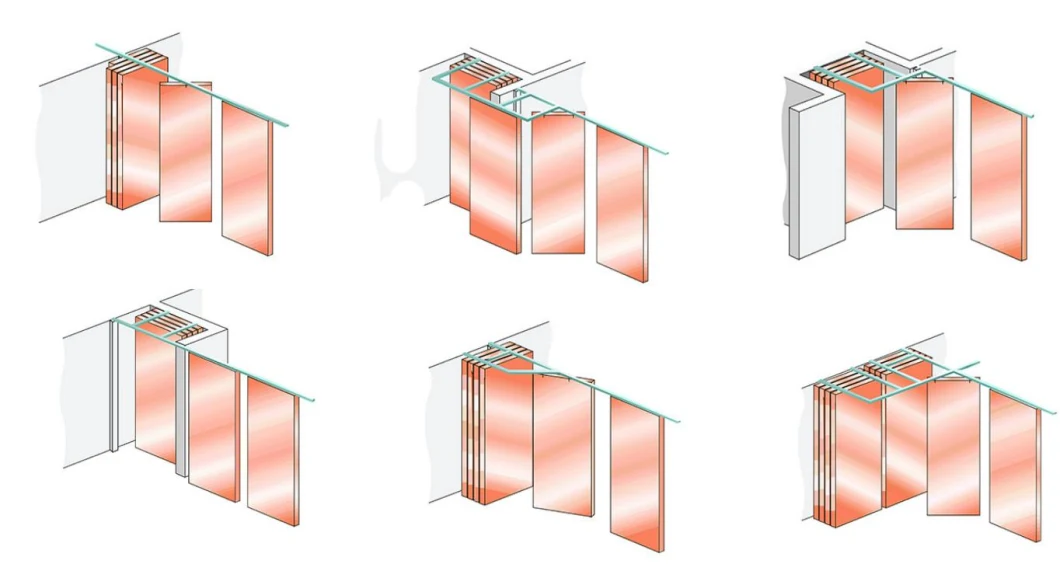

Stacking Ways

Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and StadiumApplications

Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium
Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium
Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium
Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium


Acoustic Wall Panels The Most Popular Movable Partition Walls for Hall for Multi-Purpose Hall and Stadium

The specific details of ultra-high movable partition products

Ultra-high screen is a kind of movable screen, which can also be called the maximum heavy-duty ultra-high temperature screen of 16 meters. It is also very easy to push and pull the ultra-high type movable partition. Used in large-scale banquet events, the banquet hall often becomes a veritable "wall" in the conference hall. The partitions of this series of activities are intermittent, used in restaurants, training rooms and small conference rooms in modern hotels. It can also be used as a frequently used board for stickers or Hanging paintings can also be used as ordinary paintings or hanging paintings. Various open doors can also promote various mobile office exhibitions, which play a role in preventing theft.

The applicable height of space separation is 7 meters to 16 meters, and the Sound Insulation effect of high compartments is as high as 53 decibels. It can be used in large multi-purpose halls, hotel banquet halls, conference and exhibition centers, gymnasiums and auditoriums and other tall places.

The ultra-high movable partition walls are all surrounded by double-layer aluminum alloy frames. It is necessary to adopt various methods such as oxidation and electrophoresis according to customer requirements.

The heavy-duty follow-rail used for ultra-high Movable Divider Wall, the number of times the rolling suspension wheel of the model can slide up to 100,000 times, has good technology in the partition industry. The applicable height is 8m-17m. The maximum load-bearing of the rail is 1250kg/m, and the maximum sound insulation coefficient of the partition wall is 60dB. Generally, it can be widely used in airports, large exhibition halls and other large places.

There are also similarities between Movable Divider Wall and traditional fixed screen partitions, that is, the functional characteristics of blocking sight lines and separating space, but the effect of dividing space by movable partition walls is more significant than that of traditional ones, which can be used anytime, anywhere. According to different actual needs, a number of different areas are divided to use the space. Indoor places, such as temporary reception rooms or conference rooms, can be enclosed by movable partition walls, and it does not affect the normal work around, which is convenient and fast, making the indoor space more comfortable. Rich and diverse. When it is not needed, it can be stored and moved to the storage room, so as not to affect the viewing and functionality of the overall environment.
