Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement
Engineering Solution Capability: Total Solution For Projects
Application Scenario: Hotel, Villa, Home Office, Office Building, Mall, Hall, Gym, Home Bar
Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese
Place Of Origin: China
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC B
Application: Office, Hotel Banquet Hall, etc.
Main Material: Aluminum Frame and Track
Soundproof Mater: Rock Rool , Glass Wool
Soundproof Stc: 40dB-50dB
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Stacking Way: Centre Partiting; Side Parking
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANGZHOU
Payment Type: T/T
Incoterm: FOB,CIF,EXW
operable moveable partition are widely used for installation in various places, such as different places, different places, etc. , you need to know in detail the height and length of the customer at any location and the needs of the partition wall to design the installation plan of the partition wall size. The biggest feature of the operable moveable partition is that it can be freely recombined into the required space. Most likely the installation was successful.
Movable partition walls are now inseparable from people's lives. Whether it is home use, office use, or hotels and other spaces that require sound processing, they are all suitable for installing movable partition walls to meet people's needs for multi-functional use of space. The movable partition wall needs professionals to install, but in daily use, only one person can easily push and pull the partition wall door panel, which greatly saves manpower and material resources.
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type

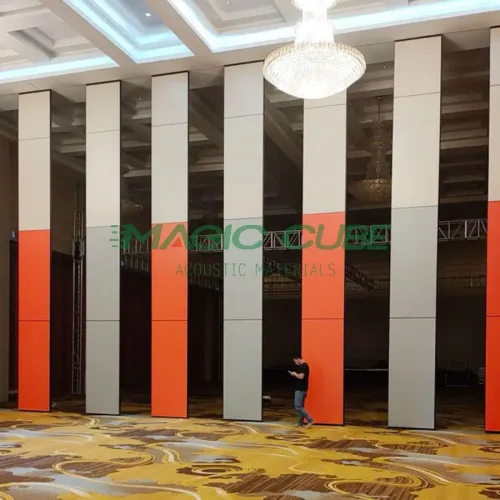

Ultra-high folding partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high folding partition wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
At present, partitions are becoming more and more common in our lives, especially in some places with relatively large spaces, partitions can play a great role. Make this space layout simple.
What are the characteristics of movable partition
1. Freedom. The movable partition can be used freely, and it can be expanded or reduced according to the size of different areas of the space and the needs of customers, which is very convenient to use.
2. The movable partition can separate the space at will, and at the same time can ensure the privacy of the user. With a private space, life will become more convenient.
3. Then, the Sound Insulation effect of this partition is very good, and it also has a certain degree of heat insulation.
4. In general, the appearance design of the detachable partition wall is very fashionable and simple, so no matter where it is placed, it can play a certain decorative role. This partition is widely used in hotels, guesthouses, banquet halls and other occasions, because it is very convenient to install and use, and the decorative effect is very good.
