Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement, Other
Engineering Solution Capability: Total Solution For Projects, Others
Application Scenario: Hotel, Office Building, Workshop, Mall, Hall, Gym
Design Style: Contemporary, Postmodern, Craftsman, Traditional, Mediterranean, Mid-Century Modern, Modern, Coastal, Transitional, Minimalist, Rustic, Tropical, European, Industrial, Victorian, Asian, Midcentury, Eclectic, Japanese, Farmhouse, Southwestern, Chinese, Scandinavian, French
Place Of Origin: China
Application: Office, Hotel Banquet Hall, etc.
Main Material: Aluminum Frame and Track
Soundproof Mater: Rock Rool , Glass Wool
Soundproof Stc: 40dB-50dB
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Stacking Way: Centre Partiting; Side Parking
Open Way: Sliding Partition
Ransport Package: Carton Paper Packaging, MDF Batten Cover Corners
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC Board, Fabric
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: Movable Divider Wall
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANZGHOU
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
Product Description
Ultra-High Soundproof Movable Walls is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The Soundproof Movable Walls brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.
Specifications
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high Movable Partition is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications

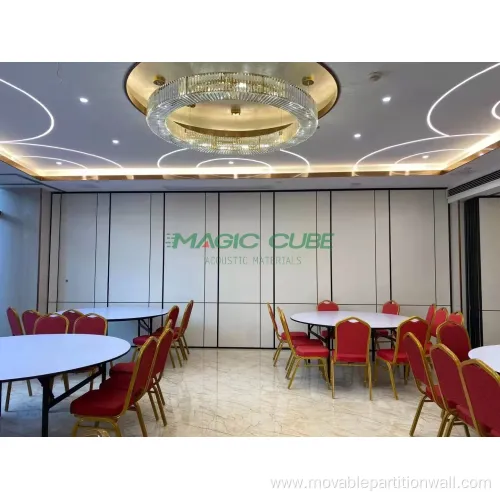

The hotel banquet hall Movable Divider Wall has a variety of finish options. Because of the different needs of customers, different venue spaces and the variety of finishes, each event partition is different and very personalized. In addition to traditional materials such as plate hard packs and cloth leather soft packs, there are also new technical materials such as 3D printing and inkjet printing, so it can fully show the unique charm of your products.
The hotel banquet hall Movable Divider Wall has a variety of finish options. Because of the different needs of customers, different venue spaces and the variety of finishes, each event partition is different and very personalized. In addition to traditional materials such as plate hard packs and cloth leather soft packs, there are also new technical materials such as 3D printing and inkjet printing, so it can fully show the unique charm of your products.
