decorative waterproof folding wall panels

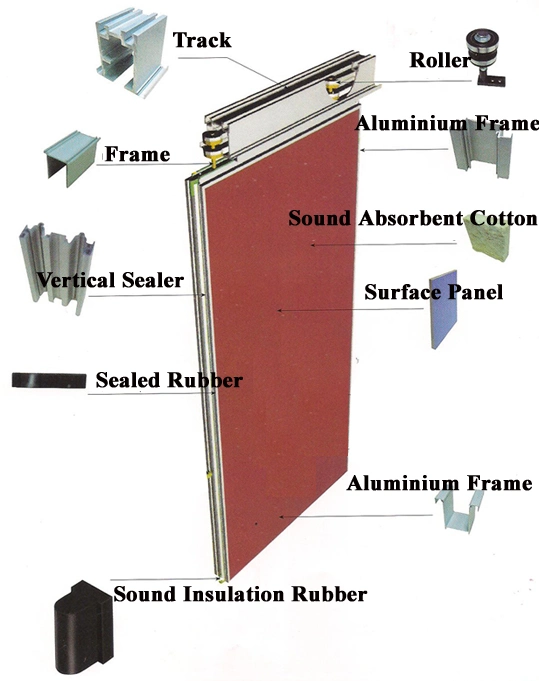

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

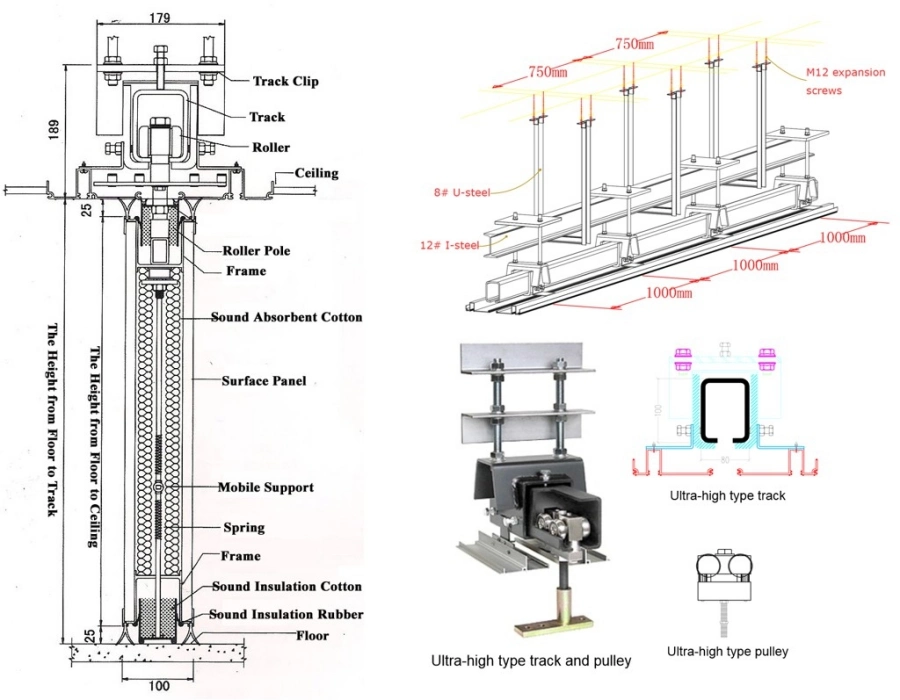

    Ultra-high Moveable Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high Moveable Wall is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

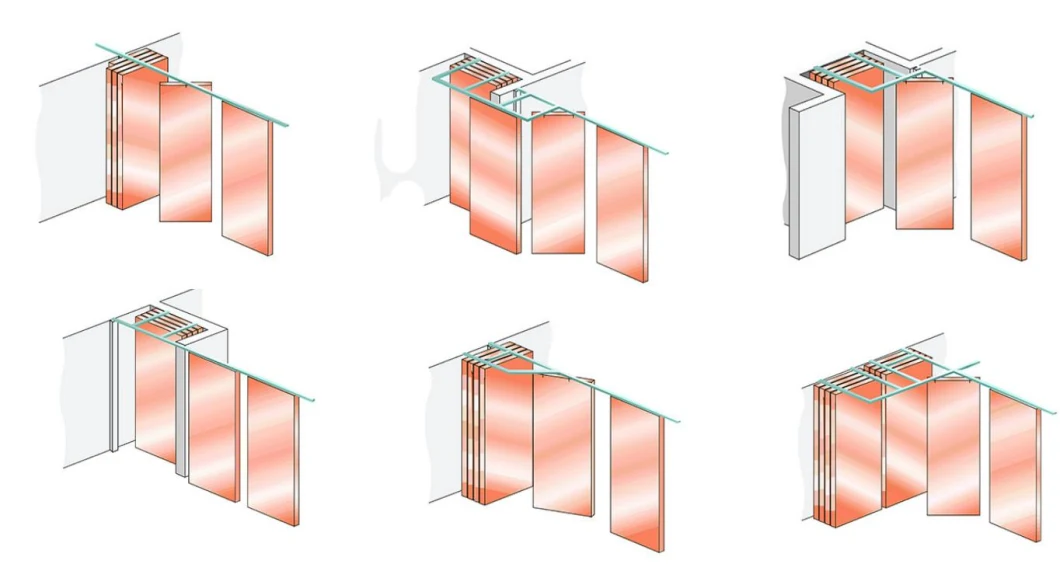

Stacking Ways

Applications

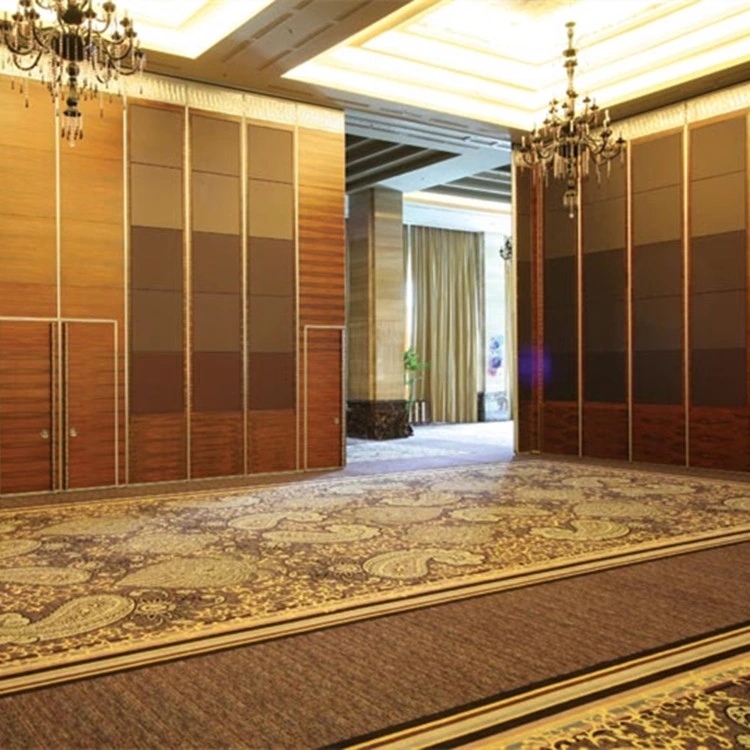

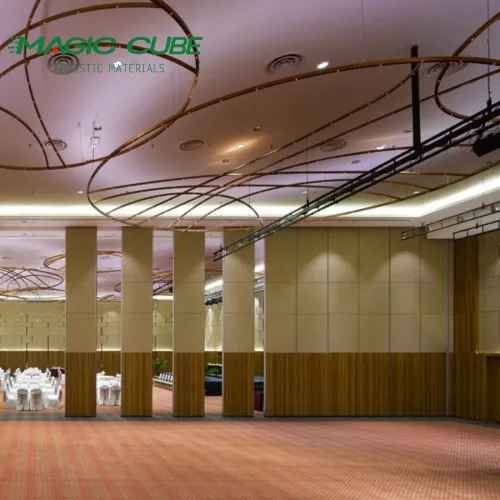

The ultra-high Movable Partition Wall is a kind of partition wall, also known as the partition wall, which is a non-load-bearing component that separates the interior space of the building. When you don't need to use it, you can fold it and put it aside to make the combined space appear wider and larger. The movable partition has the characteristics of easy movement, simple operation, high Sound Insulation and fire protection, etc. It is especially suitable for hotels and Space separation in large buildings such as banquet halls. The design of this movable partition is equipped with a vertical compression fitting device to keep the partition in place very securely.

1. It supports partial disassembly and assembly, which can be reused many times. The material of the partition wall system adopts polymer technology materials, and it has the functions of fireproof, sound insulation and heat insulation. Because it is a green and environmentally friendly building material, it has a long service life. The materials for installing movable partition walls are cheaper and more durable than installing other forms of partition materials. Therefore, the Movable Partition Wall is more cost-effective, and it is suitable for use in banquet halls, hotels and other places.

2. In a hotel or banquet hall, customer groups and customer needs determine the area of the separated space. In order to meet the office needs of enterprises in all walks of life at the same time, the large space with a single function is divided into multiple small spaces with different areas. Improve space utilization and flexibly change the size of the space.

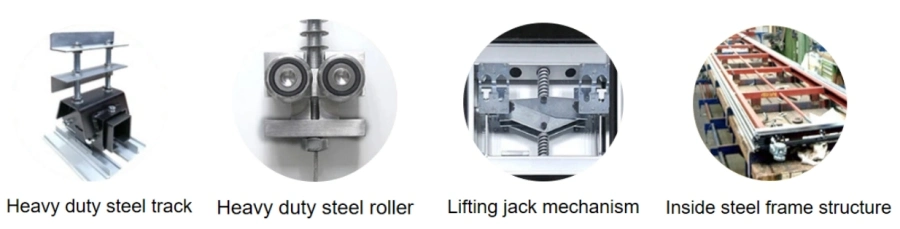

3. The ultra-high movable partition wall is surrounded by a double-layer aluminum alloy frame with a thickness of about 100mm. Various methods such as oxidation and electrophoresis can be used according to customer requirements. This kind of movable partition wall adopts heavy-duty track, and the number of wheel rolling and hanging wheel sliding can reach 100,000 times. The partition wall is made of fire-proof and moisture-proof materials, which has a good sound insulation effect. In normal use, only one person can easily push the huge Ultra-high Partition Wall. Multiple small spaces used by many people can be arranged in a very short time, which is efficient and labor-saving. In today's fast-paced society, time is money. Reasonably manage time and improve work efficiency efficiently, which is why movable partition walls are so popular and accepted.

4. The strong door frame of the movable partition is equipped with a sealing strip, so that the sound insulation effect will be more significant and the sealing performance will be improved, so that the sound insulation system is complete.
