Brand: MAGIC CUBE
Main Application: Commercial Furniture
Types Of: Office Furniture
Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y
Transportation: Ocean
Place of Origin: CHINA
Certificate: CE
HS Code: 76101000
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
The ultra-high Moveable Partition Wall system is a kind of partition wall, also known as the partition wall, which is a non-load-bearing component that separates the interior space of the building. When you don't need to use it, you can fold it and put it aside to make the combined space appear wider and larger. The movable acoustic walls has the characteristics of easy movement, simple operation, high Sound Insulation and fire protection, etc. It is especially suitable for hotels and Space separation in large buildings such as banquet halls. The design of this movable partition is equipped with a vertical compression fitting device to keep the partition in place very securely.
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high moveable dividers wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high moveable dividers wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications

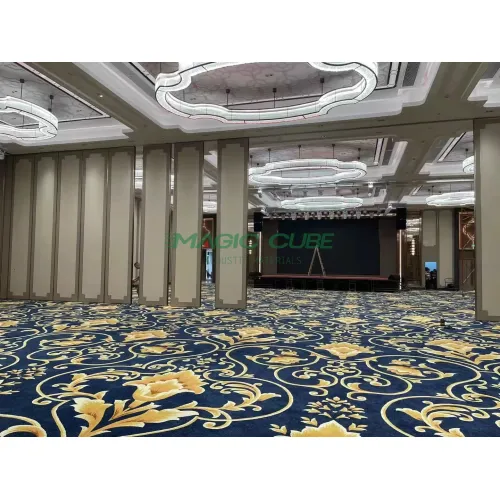

As the name suggests, the ultra-high-type movable acoustic walls is used in general large banquet halls or conference centers. The height of the ceiling is relatively high, usually as high as 8 meters or even 12 meters, and it will reach a height of 15 meters. This ultra-high type movable partition wall is selected for the use of the so-called multi-functional hall. In such a high place, the door panel will be much heavier than the door panel of the general movable partition, which means that the moveable partition wall system used is completely hung on the steel structure, and the structure of the ceiling needs to bear the weight of tons or even more than ten tons. The material selection and installation requirements for the steel frame are very high. Generally, the structure of the house is more complex, the conventional concrete steel structure, tennis steel structure or simple structure, etc., for different For the housing structure, professional designers need to investigate the site and then make a professional steel frame installation plan. With our many years of experience, we will definitely work out the most suitable installation solution for you. In order to avoid the result of failure after installing the steel frame, it is necessary to focus on the span of the steel frame when formulating the plan, and the specification of the steel to measure the load-bearing value. These factors are indispensable, otherwise, the installation of the steel frame will fail.
Product Categories : Movable Wall
