Acoustic Folding Wooden movable soundproof walls



Product Details

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

    Ultra-high Movable Partition is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

The portable partition wall with door has a variety of finish options. Because of the different needs of customers, different venue spaces and the variety of finishes, each movable walls for classrooms is different and very personalized. In addition to traditional materials such as plate hard packs and cloth leather soft packs, there are also new technical materials such as 3D printing, so it can fully show the unique charm of your products.

When installing a portable partition wall with door, it is necessary to survey the surrounding environment and measure the size of the installation site to understand the overall environment and obtain the appropriate height and partition range. In order to make the partition and the scene form a strong consistency, more fashionable and good collocation, showing a strong coordinated visual effect.

Design of sound proof movable walls :

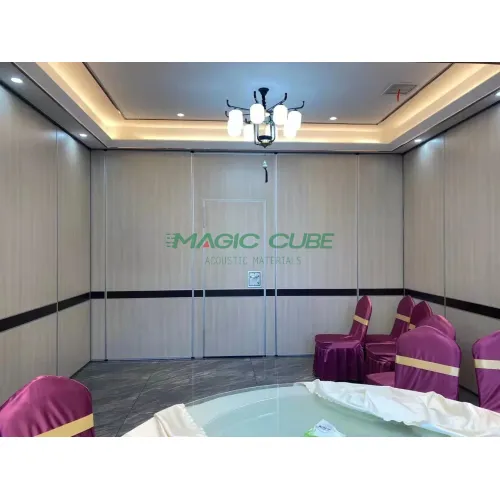

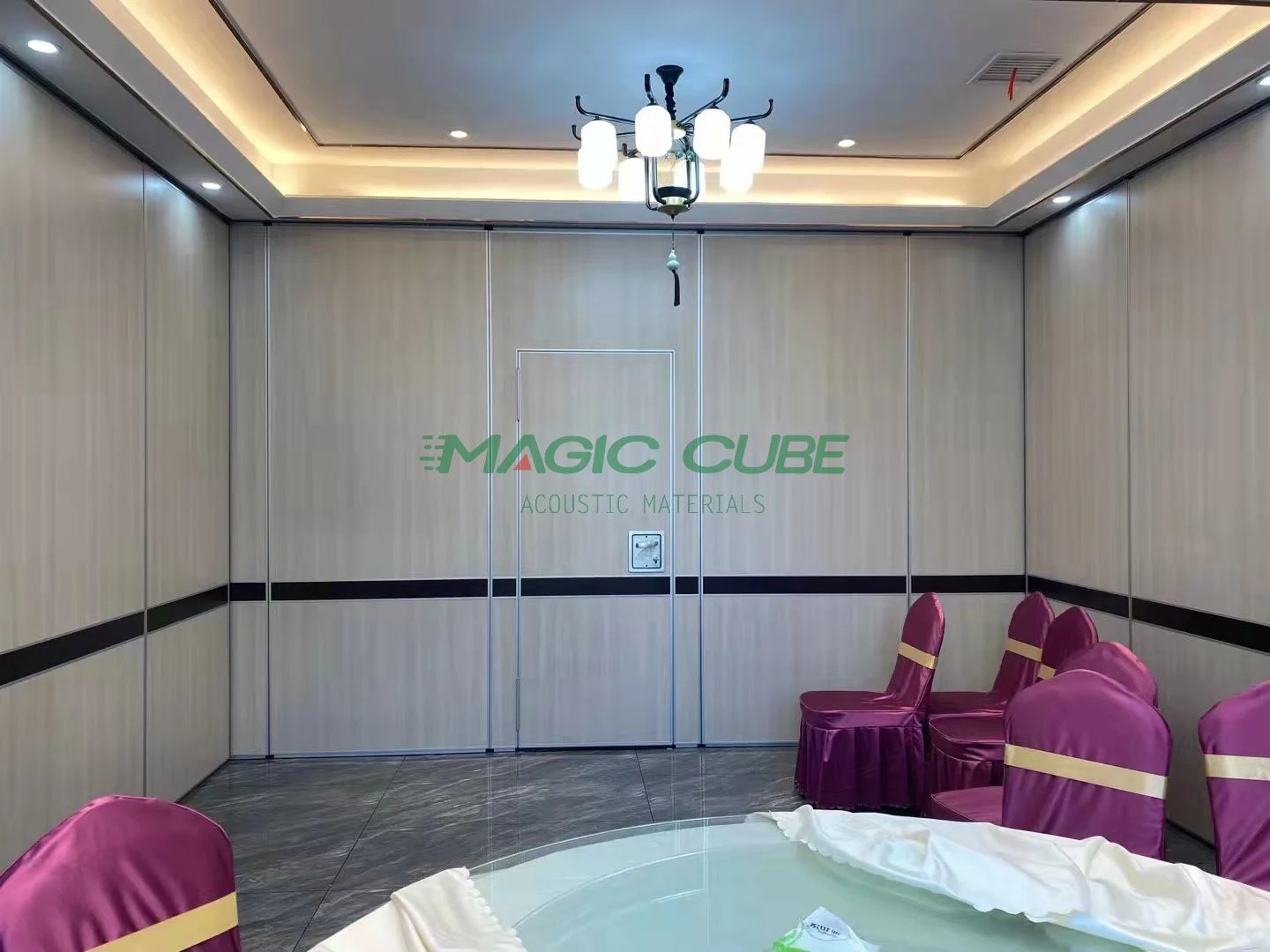

The sound proof movable walls used in the hotel banquet hall can meet any requirements of different customers and design a unique style. Of course, the interior design can learn from domestic and foreign traditions and existing design achievements, but it cannot be just a simple "reference", regardless of the environment. It is also not advisable to "apply" to the type of building. Modern interior design should advocate innovation that combines the actual situation such as site size and style. For example, for the interior design of a hotel banquet hall, we can't just draw the scoop just like the gourd, but blindly use the broadness as the general model of design. Instead, we should pay attention to the actual use needs of the hotel and the hotel environment style and other factors for reasonable planning. The hotel banquet hall is relatively spacious, so it is necessary to have both the reception function of large-scale banquets and the use of diversified banquet halls. In the process of designing and installing the plan, we will combine the needs of customers and the style of the hotel banquet hall to innovate the design.
