room mobile separator sliding



Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard

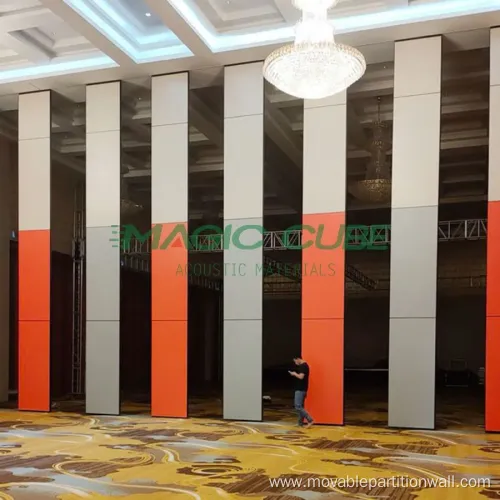

Ultra high 100 type

    Ultra-high office moveable walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high office moveable walls can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

The ultra-high type soundproof movable panels can be called a high partition or a high partition wall. Different from the ordinary partition wall, it is a partition whose height is as high as the ceiling and can divide the space at the same time. Professional type high partition door panels have general The function of the wall, separating the space, is much more prominent than the traditional partition wall in terms of lighting, Sound Insulation, fire prevention, environmental protection, easy installation, reusability and mass production.

Hotels generally need to be renovated after two or three years. Otherwise, the hotel environment will appear outdated, and the overall impression of customers on the hotel will be greatly reduced. If you want to renovate, should you use traditional walls or movable walls?

If the traditional fixed wall is still used, the old wall needs to be dismantled when redecorating the hotel, which is particularly troublesome and affects the business. Now there is a kind of movable partition wall that is gorgeous and can be disassembled freely. The installation of beautiful soundproof movable panels not only double the decoration effect of the hotel, but also very convenient to use and store. The movable partition wall is much more durable than the traditional partition wall, so its cost performance is higher than that of the traditional wall.

After installing and using this kind of movable partition wall, after the partition is divided into a small space, there is enough space to use. Its sound insulation effect is better than that of the traditional fixed wall, so the remaining garbage during disassembly is better than the traditional one. Less and easy to clean up. Because our super high-profile partition walls are made of green, environmentally friendly and renewable materials, these garbage are recyclable and recyclable garbage.

Need to pay attention to the following problems in the maintenance of mobile partitions:

1.The facade is uneven and uneven, you can make corresponding adjustments according to the finish. Measure with a spirit level on the partition surface. Be careful to leave a gap of about 10mm.

2. The partition is unstable and cannot be too close, so a certain distance should be maintained between the partition doors. Use a thin line to level the side of the movable partition. Prepare glue during the maintenance process. After the maintenance is completed, clean the surface of the partition.

3. When repairing the partition door, be careful not to damage the door.

4. When installing the card slot plate, remember that the card slot plate cannot be installed too tightly, and it is generally successful if it can be stuck.
