Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement, Other
Engineering Solution Capability: Total Solution For Projects, Others
Application Scenario: Hotel, Mall, Hall, Gym, Office Building, Home Office
Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Southwestern, Postmodern, Japanese, Modern, Mediterranean, Chinese, Craftsman, Minimalist, Coastal, Industrial, Mid-Century Modern, French, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian
Place Of Origin: China
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC Board, Fabric
Application: Office, Hotel Banquet Hall, etc.
Main Material: Aluminum Frame and Track
Soundproof Mater: Rock Rool , Glass Wool
Soundproof Stc: 40dB-50dB
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Stacking Way: Centre Partiting; Side Parking
Open Way: Sliding Partition
Ransport Package: Carton Paper Packaging, MDF Batten Cover Corners
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SEHNZHEN,GUANGZHOU
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
The Movable Glass Partition Walls used in each place is completely different. The partition wall ordered in this place can only be used in this place, because the precise size data of the site size needs to be recorded before the Movable Glass Partition walls is made, and you can choose by yourself. Plates, finishes and colours. There are four types of our movable partition walls, 65 type, 80 type, 100 type and super high 100 type. Different types of partition walls are selected according to different places, and the thickness is customized according to the height and customer needs.
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Folding Glass Wall systems is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
The mobile glass layer room is double-layered, and there is no reinforcement pipe placed around it. The double-layer glass is hollow, and the glass becomes wider and becomes a groove shape. The double-layer glass is arranged on both sides of the groove, and the upper end of the glass layer is equipped with rails and rollers. If you want to increase the safety factor of the glass, it is best to use tempered glass, a layer of explosion-proof film will be pasted on the surface of the tempered glass, and a horizontal clip is placed on the surface of the tempered glass, and then the top position will be fixed. Insert fixing screws at the connection of the force-bearing block of the glass moving partition, the guide wheels on both sides of the roller frame are symmetrically distributed, and the central axis should be vertically embedded in the roller frame.

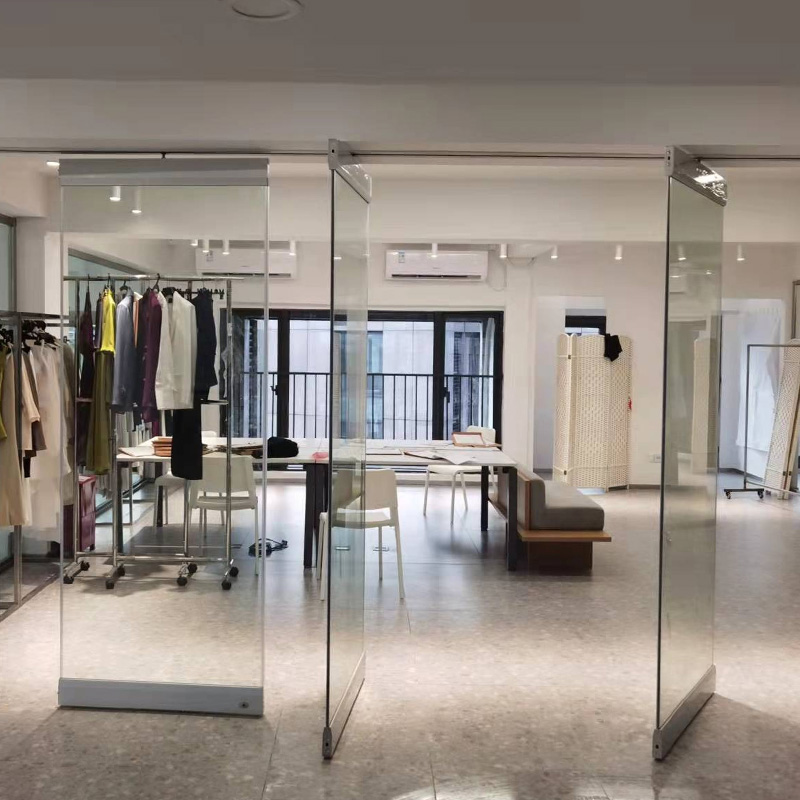

glass foldable partition
It can maintain the integrity of the environmental style without disturbing the original style. The surface of the glass partition can be used for surface operations of soft decoration such as leather decoration and fabric art, so as to unify the decoration style with the interior, so as to achieve a bright space. The use of glass partitions requires simple production, and is usually used in office spaces such as offices and office buildings. This kind of foldable glass wall has the characteristics of easy installation, reusability, fire prevention and environmental protection, as well as the simple and elegant visual effect of the appearance, which attracts the attention of modern people and is greatly appreciated by interior designers.
Product Categories : Moveable Glass Wall Systems
