Soundproof aluminium glass movable partition wall

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Other, Return And Replacement

Engineering Solution CapabilityTotal Solution For Projects, Others

Application ScenarioHotel, Gym, Workshop, Office Building, Home Office, Hall, Mall

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Minimalist, Chinese, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Farmhouse, Asian, Tropical

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric(Le

Main MaterialAluminum Frame and Track

Soundproof Stc40dB-50dB

Stacking WayCentre Partiting; Side Parking

Transport PackageCarton Paper Packaging, MDF Batten Cover Corners

TrademarkMQ Acoustics

HS Code76101000

DimensionsW700-1200mm, H2000-5200mm, Thickness 80-110mm

SpecificationCustomized

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortSHENZHEN,GUANGZHOU

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

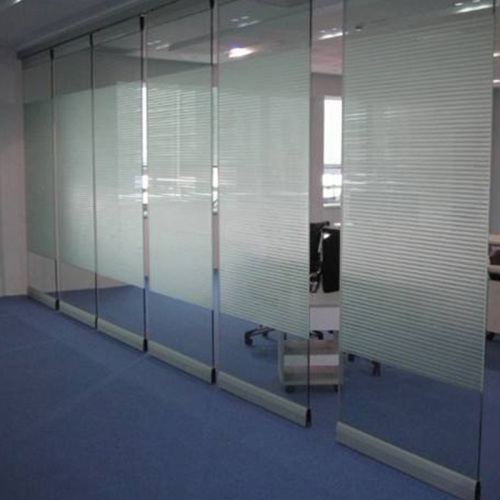

The Movable Glass Partition Walls used in each place is completely different. The partition wall ordered in this place can only be used in this place, because the precise size data of the site size needs to be recorded before the movable partition wall panel is made, and you can choose by yourself. Plates, finishes and colours. There are four types of our movable partition walls, 65 type, 80 type, 100 type and super high 100 type. Different types of Movable Glass Partition walls are selected according to different places, and the thickness is customized according to the height and customer needs.




Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure


Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall
Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall

Ultra high 100 type

    Ultra-high folding window walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters highfolding window walls can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall

Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall

Stacking Ways

Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for HallApplications

Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall
Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall
Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall
Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall


Wholesale High Strength Cheap Unique Movable Partition Wall Movable Partition Acoustic Walls for Hall

The characteristics of collapsible glass wall decoration are the style characteristics, personality and culture of the office, and even the glass partition design of the office with a bit of corporate history. It is only the space scene customization of the partition design. The office style including corporate culture and independent office will all be in the working space, making it suitable for the humanized needs of the enterprise. The expression of the decoration style in each design The designer's design style is determined by the design is Using professional design style, creativity and creativity and creativity not only show the interest of the work, but also be very creative.

Create the overall coordination, sense of value and artistic beauty of the interior space.



Partition provides customers with space solutions for overall collapsible glass wall, creates irreplaceable and irreplaceable added value, and creates industry-leading design concepts and cultural systems from the perspective of internationalization. The products produced by the company are all environmentally friendly products, which are green, healthy and environmentally friendly and can be reused, which is very in line with the trend of energy saving and energy saving in today's new situation. Compared with traditional decoration, it reflects its unique advantages, but also reflects his spatial flexibility.

Modern office decoration style: The decoration style of the modern office fired the first shot of industrial decoration early, showing the avant-garde style and the originality of the office space. In addition, it presents the overall space line sense, the design concept and pattern of the modern office decoration style. The integration and distribution of moving lines, and the combination of aluminum profiles are used to create a modern office space full of humanity.
