Good quality decorative wood partition wall

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Main ApplicationCommercial Furniture

Types OfOffice Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce)Y

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginChina

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

Payment TypeT/T

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners

Product Description

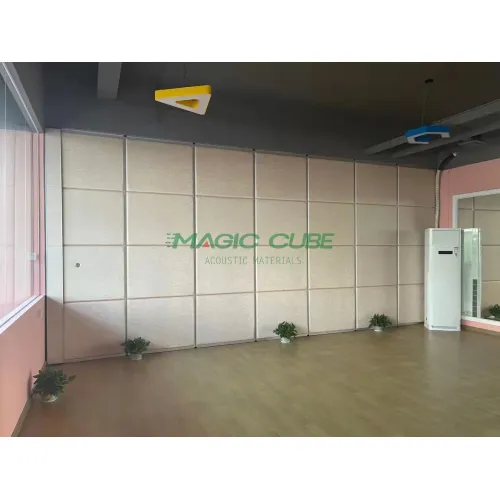

  soundproof movable partition  is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The soundproof movable partition brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure

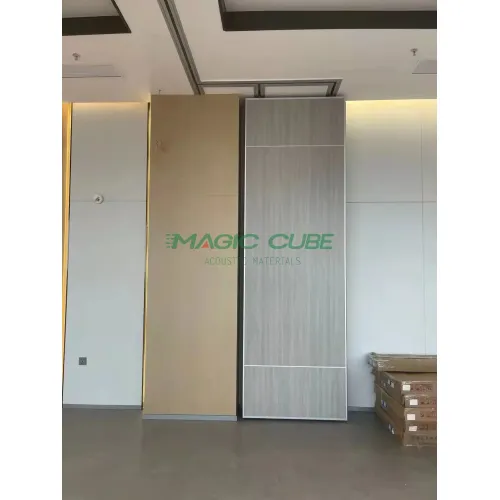

Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels
Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels

Ultra high 100 type

    Ultra-high movable acoustic dividers is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high movable acoustic dividers can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels

Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels

Stacking Ways

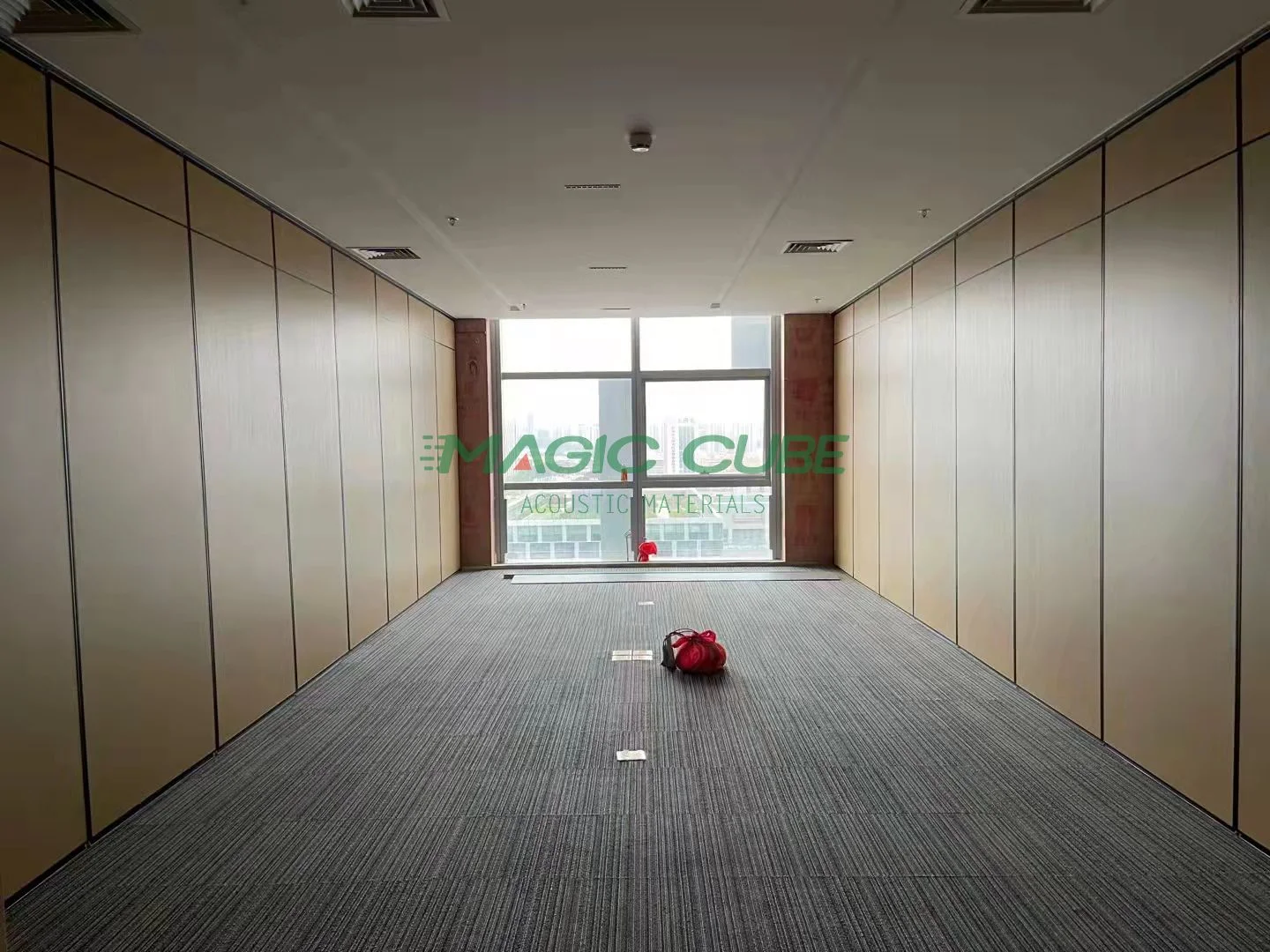

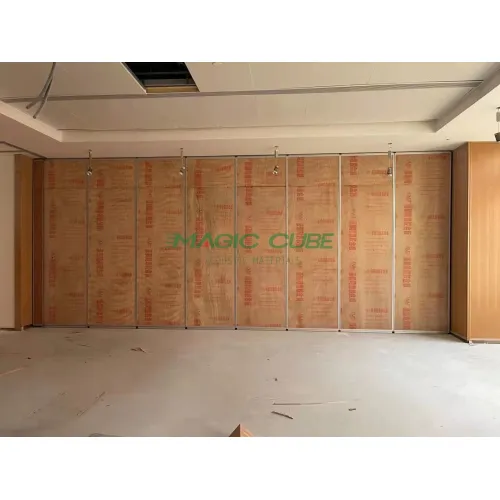

Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound PanelsApplications

Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels
Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels
Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels
Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels


Wholesale High Strength Cheap Unique High Sound Insulation Movable Wooden Partitions Sound Panels

To create a high-end atmosphere of the banquet hall, the space must be open, but under the condition of limited economic budget, it is impossible to establish its open space, because it is impossible for most hotels to spend a lot of money on low utilization rates. in the banquet hall. In order to make better use of limited space resources, active partitions solve these problems to a large extent.



Let's take a look at the characteristics of active partitions

 Although the operable partition wall is called "wall", it has the function of a general wall, but it is different from an ordinary wall. On the surface, the entire fan surface looks like a wall. In fact, it is composed of various components. The outer frame is made of aluminum alloy, which has strong stability and is not easy to be corroded. More usage requirements, support customer customization. In order to meet different usage requirements, it can be replaced with alloy materials that meet the properties to ensure a certain special purpose, and customized upgrades are recommended for a small number of environments with higher specifications.




Next, we will introduce the part of the fan surface. The "wall" body is made of various materials such as sound-absorbing cotton, so that it has the functions of Sound Insulation, heat insulation and energy saving. Communication of relevant performance, improve the sound insulation performance of the partition fan. The customizability of the fan surface is also one of the remarkable characteristics of the movable partition. The surface can be decorated with various materials such as "soft package", "hard package" and "wood veneer" to enhance the visual perception and integrate it into the environment. , to promote elegant, high-end or classic interior space.



The operable partition wall   shows the word activity incisively and vividly. It divides the internal space by manually pushing and pulling the movable partition, creating an ideal space and quickly improving the actual use efficiency.
