High strength movable partition wall board



Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

    Ultra-high folding partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type folding partition wall is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

What is a detachable partition wall?

The detachable partition wall is a kind of partition, as its name suggests, it is different from the traditional fixed partition wall. Also known as partition wall or partition wall, it is a non-load-bearing component used to separate indoor space, which can not only divide space but also decorate and beautify the room. When you need to divide a large space into multiple small spaces or connect multiple small spaces into a large space, it is easy and simple to operate successfully. Living partition The so-called living partition is to divide an indoor space into multiple usable spaces vertically. This method is the most commonly used in interior design, because the specific forms of the divided spaces are different.

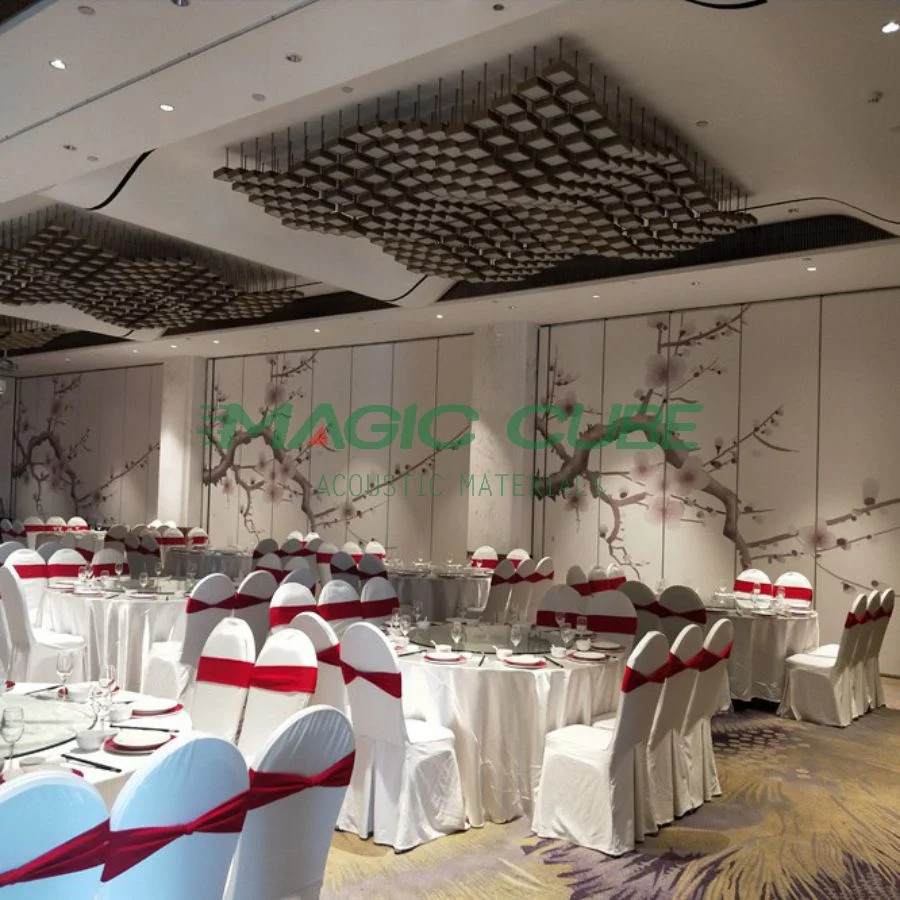

For example, the super-high partition commonly used in hotels divides a hall into multiple functional spaces for different groups of guests. The movable partition occupies a small area and will not cause a visual sense of space oppression. The movable partition has an ultra-high Sound Insulation rate, and the maximum value can isolate the noise of 50 decibels, so there is no need to worry about it being very noisy when used together.

What are the advantages of movable partition walls?
