movable wooden movable partition board
  • movable wooden movable partition board
  • movable wooden movable partition board
  • movable wooden movable partition board
  • movable wooden movable partition board
  • movable wooden movable partition board
  • movable wooden movable partition board

movable wooden movable partition board

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

After-sales Service: Online Technical Support, Return And Replacement

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hotel, Hall, Office Building, Home Office, Gym

Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional

Place Of Origin: China

Model NO.: Movable Partitions

Type: Melamine MDF Panel, Fireproof PVC Board, Fabric

Application: Office, Hotel Banquet Hall, etc.

Main Material: Aluminum Frame and Track

Soundproof Mater: Rock Rool , Glass Wool

Retractable Range Of Top/Bottom Seals: 25mm

Transport Package: Export Packing

Specification: 65, 85, 100, 125

Trademark: MQ

Pro10000 Square Meters Per Year: duction Capacity

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: CHINA

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

The installation process of the detachable partition wall:

1. Positioning measurement. When installing, professionals will measure according to the indoor floor plan, release the control line, and then guide the position line to the roof, and then finalize the internal marking and construction details.

2. Installation of steel structure and fixed parts. The steel structure is a load-bearing member linking the ceiling and the track, it is very important, and even involves the safety of the entire detachable partition wall. In this step, it is necessary to weld the fixed parts to death according to the requirements of the construction drawing, and at the same time carry out anti-rust treatment on all the metal parts.




Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

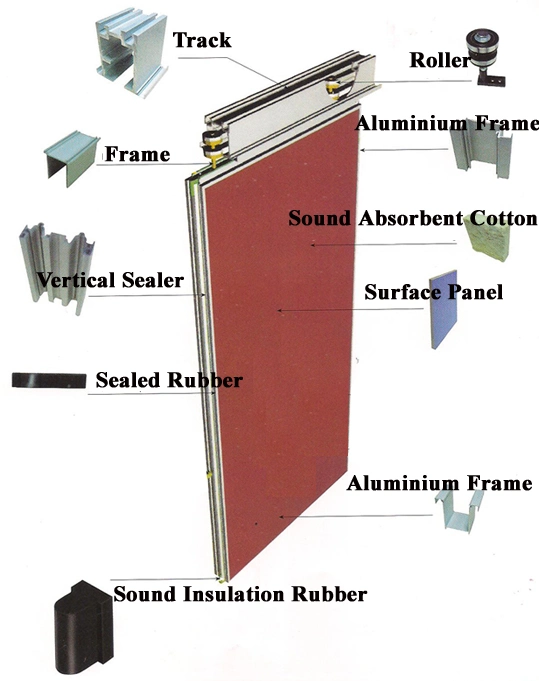

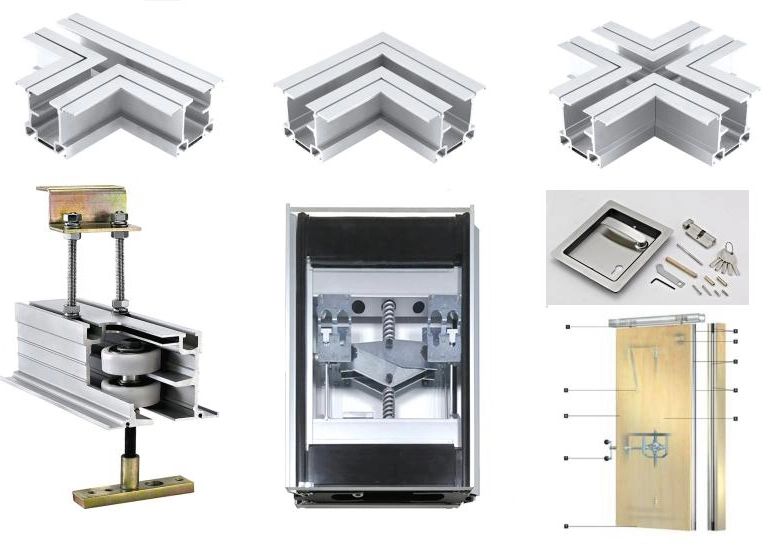

Product Structure


Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room
Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room

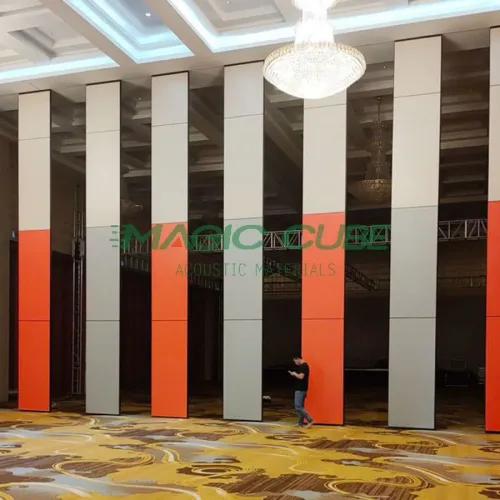

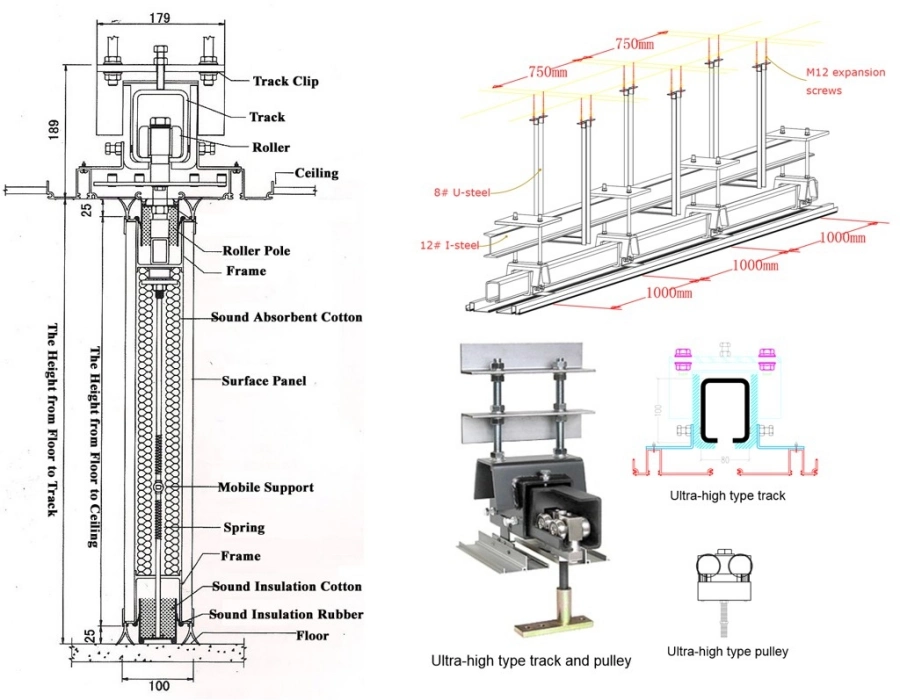

Ultra high 100 type

    Ultra-high operable moveable partition is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type operable moveable partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room

Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room

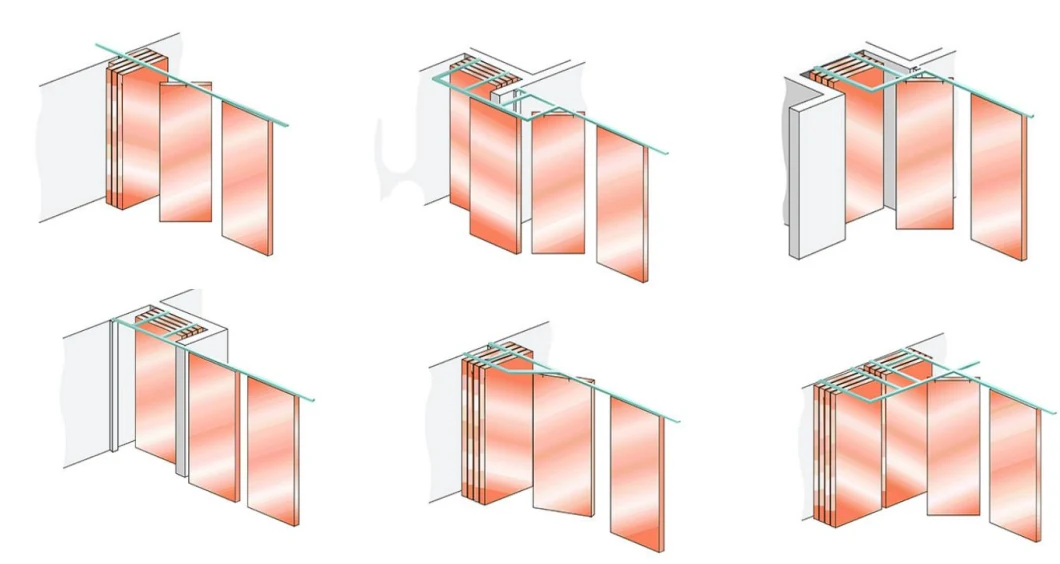

Stacking Ways

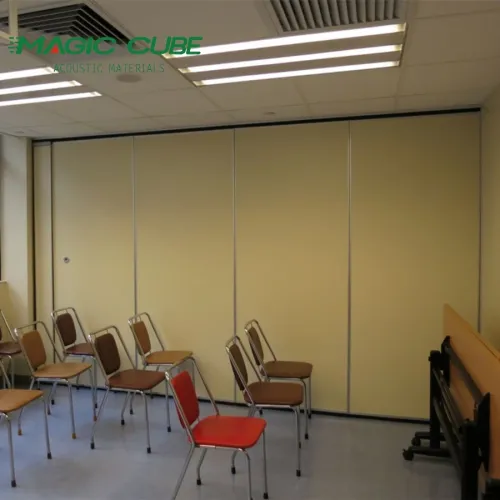

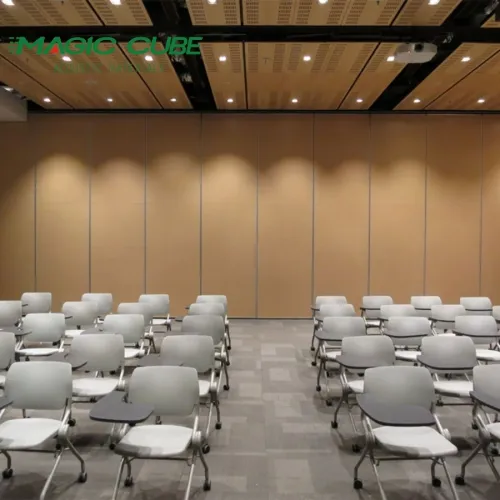

Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting RoomApplications

Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room
Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room
Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room
Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room


Automatic Room Dividers Wood Foldable Partition Movable Walls for Home for Hall or Meeting Room

When the movable partition wall is pushed, and encounters a turning point or a pushing point, the guide blocks in the guide rail will automatically guide the movable partition wall to other designated tracks to slide. % of the gravity acts on the ground, reducing the load pressure of the top steel frame and the track, enhancing the stability and improving the durability of the movable partition wall.



The super high partition wall of the automatic turning system has the following characteristics:



What are the precautions for the installation of folding partition wall?

1) Before installation, carefully observe the overall construction environment and surrounding environment where the folding partition wall needs to be installed. Investigating the site environment is the primary task, mainly to determine whether the site has the installation conditions, carefully look at the position of the beams and columns on the roof, the position of the reserved space and the position of the air-conditioning piping system, and record them one by one for the final planning. construction plan.


2) Firstly, according to the measurement results, locate and survey, and according to the requirements of the construction drawings, release the position control line of the movable partition on the indoor ground of the site, and then guide the position line of the folding partition wall to the side wall and the top plate. Secondly, the installation position of the fastener should be popped up when the wire is bounced again: the height of the installation must be agreed with the construction team installing the ceiling, so as to avoid too much unnecessary trouble.

3) The ultra-high folding partition wall is much higher and heavier than the general folding partition wall. The installation of the steel structure and the track fasteners The steel structure is the load-bearing structure connecting the ceiling and the track. The steel structure involves the safety of the entire movable partition system. Designers need to pay attention when formulating the design scheme of movable partition walls; calculate the weight of ultra-high folding partition wall to determine the load borne by the track, the specifications and fixing methods of the pre-embedded parts, etc., and then choose the track according to the design requirements, etc. Fastener.
