Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement, Other
Engineering Solution Capability: Total Solution For Projects, Others
Application Scenario: Hotel, Office Building, Workshop, Hall, Gym, Home Office, Villa
Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian
Place Of Origin: China
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC Board, Fabric
Application: Office, Hotel Banquet Hall, etc.
Main Material: Aluminum Frame and Track
Soundproof Mater: Rock Rool , Glass Wool
Soundproof Stc: 40dB-50dB
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Stacking Way: Centre Partiting; Side Parking
Open Way: Sliding Partition
Ransport Package: Carton Paper Packaging, MDF Batten Cover Corners
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: Model NO. Movable Partitions
Transportation: Ocean
Place of Origin: Type
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANGZHOU
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
The ultra-high Movable Wall ,Moveable Wall an be up to 16 meters, and the ultra-high movable partition wall brings a lot of convenience to people's work. The raw material of the wood board can choose MDF, melamine board and flame retardant plywood as the board. Due to the large volume of the ultra-high Movable Wall ,Moveable Wall, in order to avoid the damage of the partition wall door panel during transportation, it is generally difficult to install the ultra-high movable partition wall by splicing it on site.
Specifications
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high Movable Partition is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications

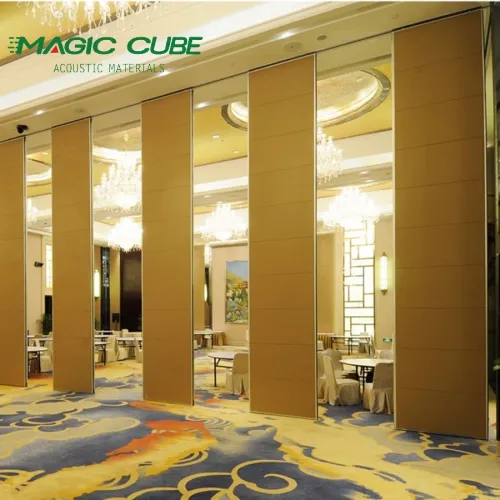

The space design of the hotel can be roughly classified into functional spaces such as conference rooms and banquet halls according to its architectural layout, building area and space use. The difference in functional space creates the difference between them. As the most important space of the hotel, the banquet hall is more multi-functional.
We install foldable banquet hall event partitions in the hall to meet the needs of various purposes of the banquet hall, so that we can more conveniently adjust the layout of the hall at any time according to customer needs. After the use of movable partition walls in the hotel banquet hall, the price of the banquet hall has continued to increase. The movable partition wall of the hotel can change the size of the space at any time, because of this feature, it gives the diversification of the functions of the banquet hall. Because the banquet hall is equipped with this kind of movable partition wall, the space utilization efficiency will be higher than that of the same kind. This is because the hotel banquet hall event partition wall can give the banquet hall the ability to express its unique personality.
The hotel banquet hall event partition wall has a variety of finish options. Because of the different needs of customers, different venue spaces and the variety of finishes, each event partition is different and very personalized. In addition to traditional materials such as plate hard packs and cloth leather soft packs, there are also new technical materials such as 3D printing and inkjet printing, so it can fully show the unique charm of your products.
