High quality Decorative partition wall



Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

    Ultra-high folding partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high folding partition wall is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

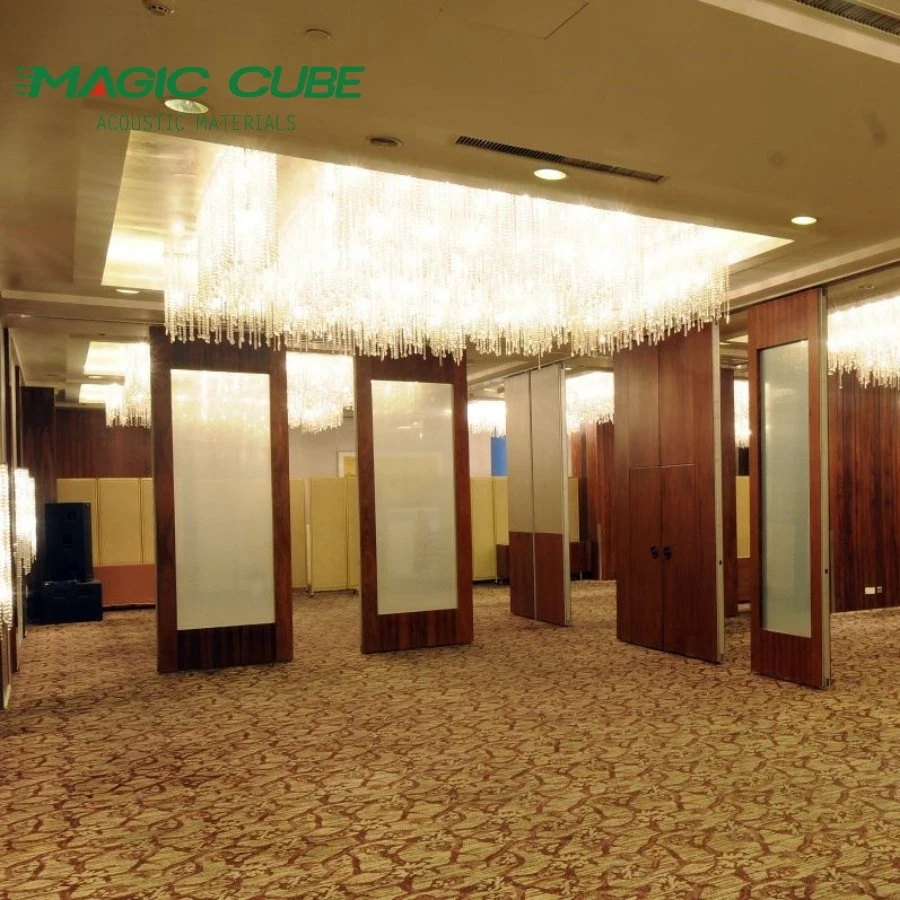

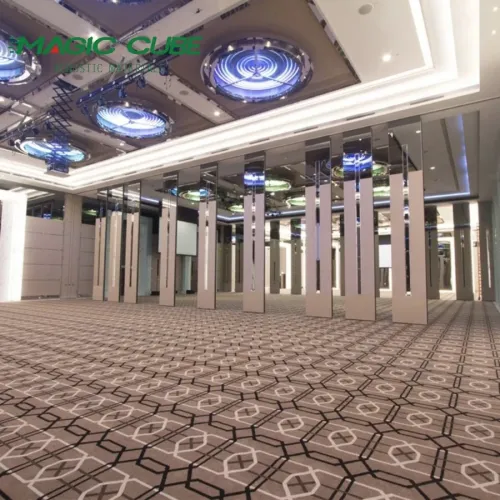

The operable moveable partition of the hotel banquet hall have very strict control standards in terms of materials. In order to reduce the pollution output, the movable partition walls are made of environmentally friendly and lightweight materials. Because there are no harmful substances such as formaldehyde in the panels of the movable partition, the entire installation period is very short, and the entire installation project is completed very quickly. After installation, the venue and operable moveable partition can be used immediately, saving time and labor costs. For the commercial building spaces with large passenger flow such as banquet hall hotels, event partitions can meet the requirements of hotel banquet halls in all aspects such as features, functions and advantages. necessary needs.

Different hotel banquet halls will also have different functions and purposes. When setting up meeting rooms in banquet halls, a single large space cannot meet the respective needs of multiple enterprises at the same time. It is divided into corresponding small spaces with activity partitions. As long as the partition wall is set up in advance and the corresponding table and chairs are placed on the same day, it is completed.

To create a high-end atmosphere of the banquet hall, the space must be open, but under the condition of limited economic budget, it is impossible to establish its open space, because it is impossible for most hotels to spend a lot of money on low utilization rates. in the banquet hall. In order to make better use of limited space resources, active partitions solve these problems to a large extent.

Next, we will introduce the part of the fan surface. The "wall" body is made of various materials such as sound-absorbing cotton, so that it has the functions of Sound Insulation, heat insulation and energy saving. Communication of relevant performance, improve the sound insulation performance of the partition fan. The customizability of the fan surface is also one of the remarkable characteristics of the movable partition. The surface can be decorated with various materials such as "soft package", "hard package" and "wood veneer" to enhance the visual perception and integrate it into the environment. , to promote elegant, high-end or classic interior space.
