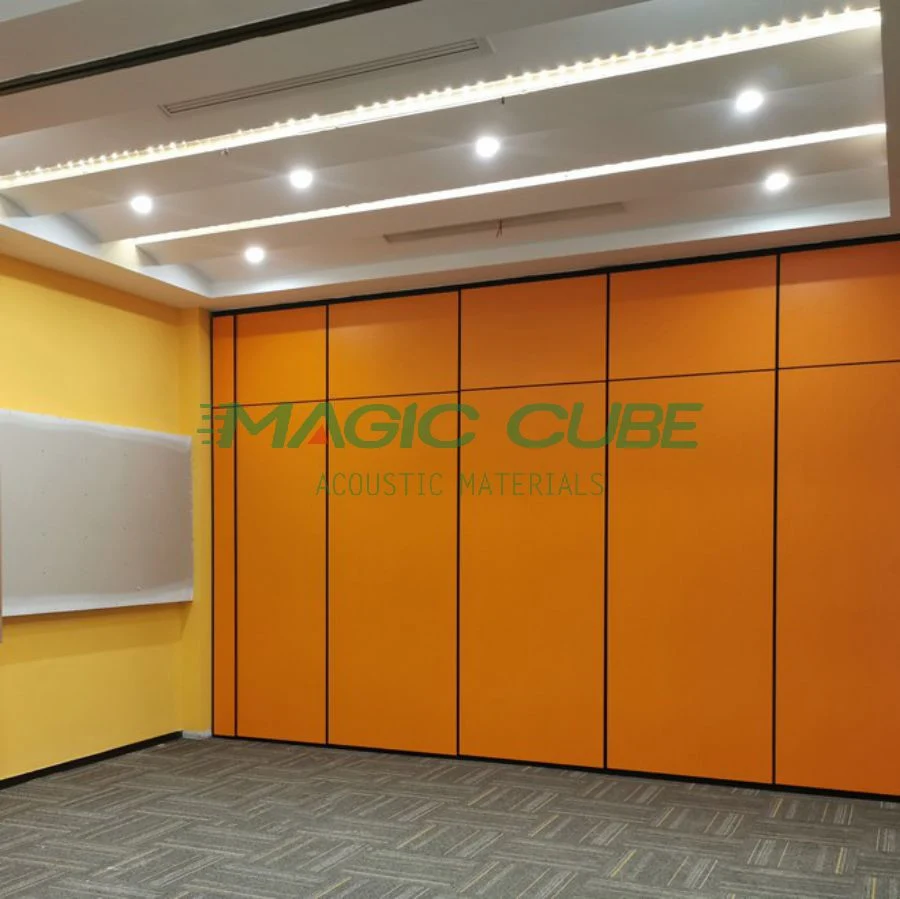

decorative solid sliding wooden partition panel

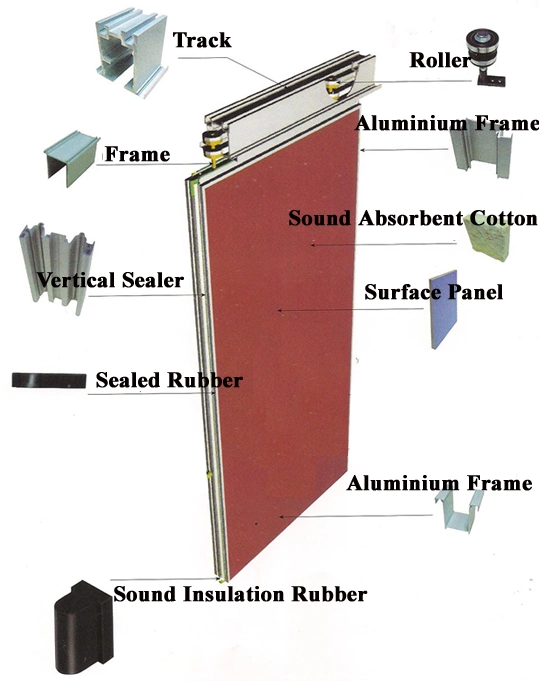

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

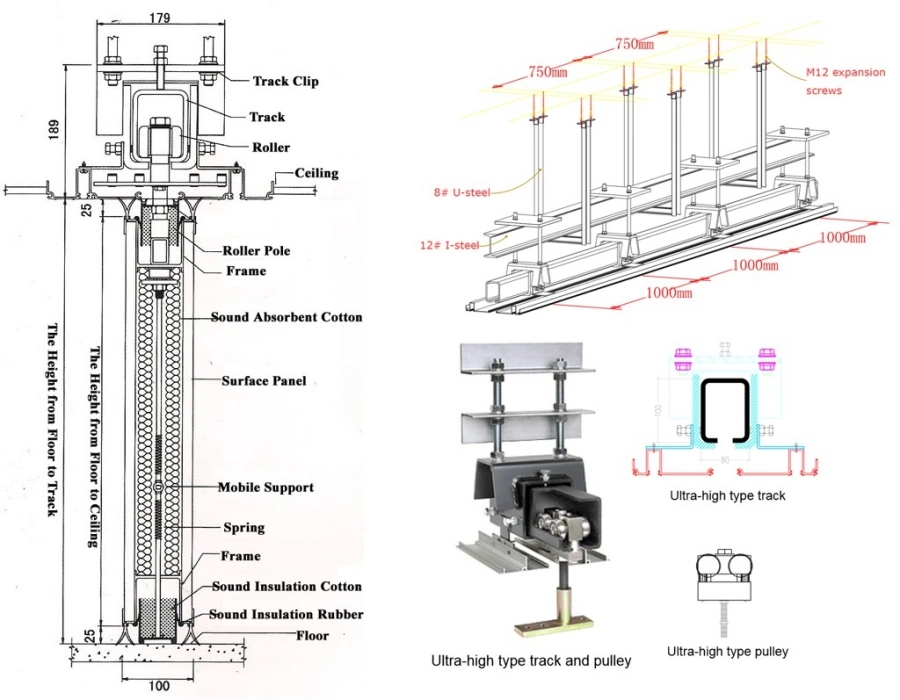

    Ultra-high operable moveable partition is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type operable moveable partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

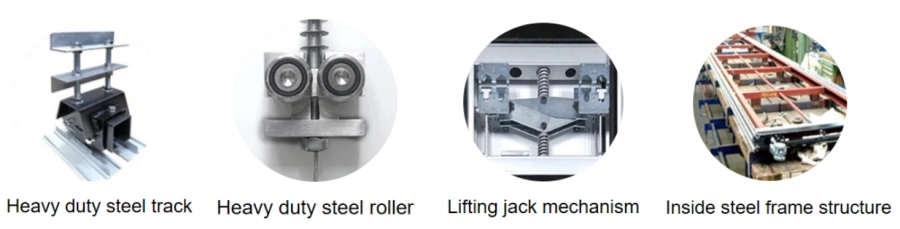

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

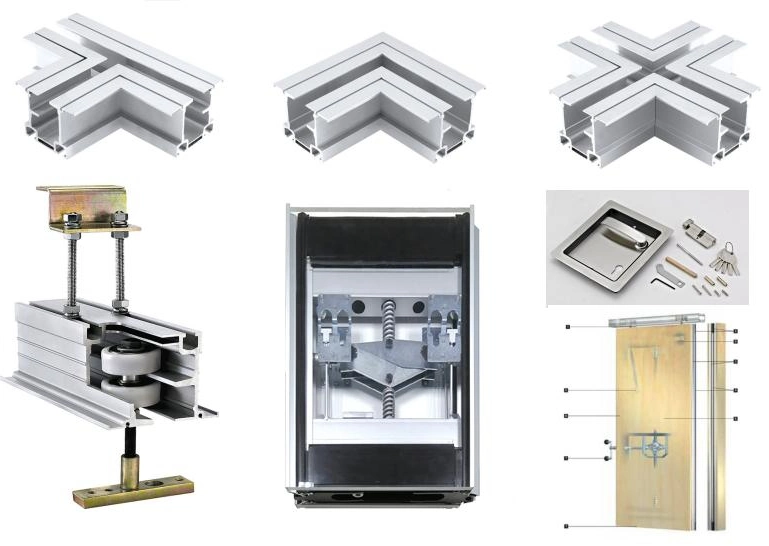

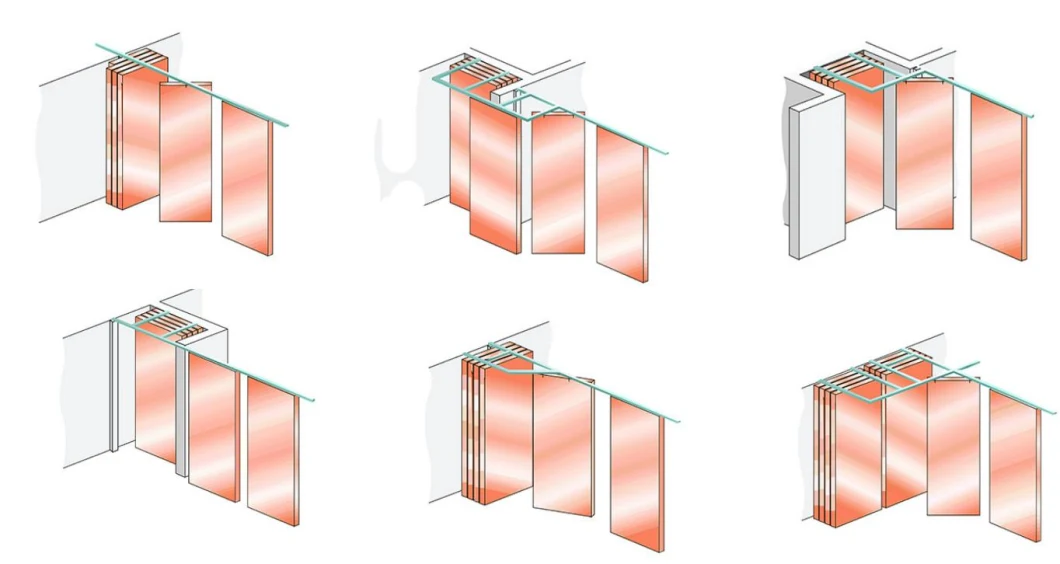

Stacking Ways

Applications

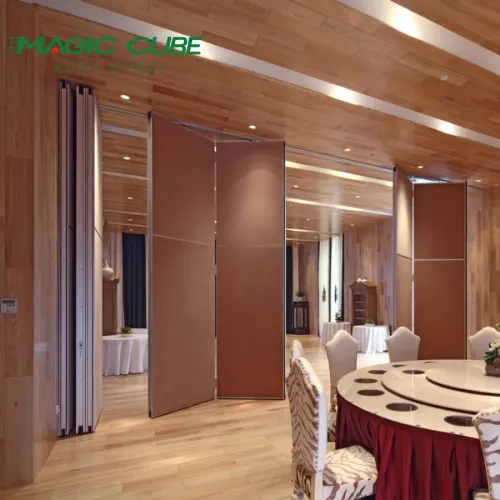

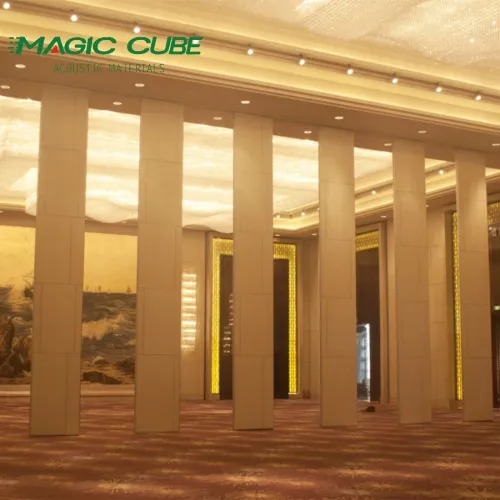

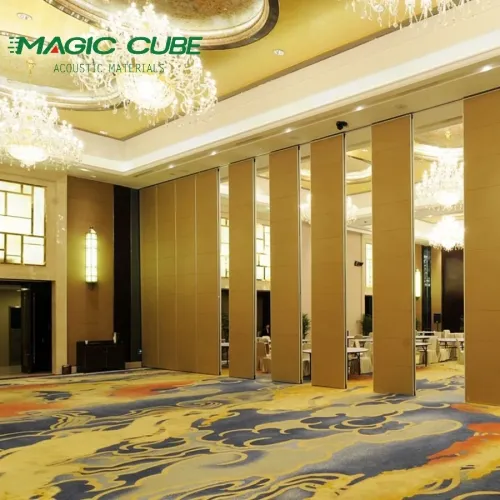

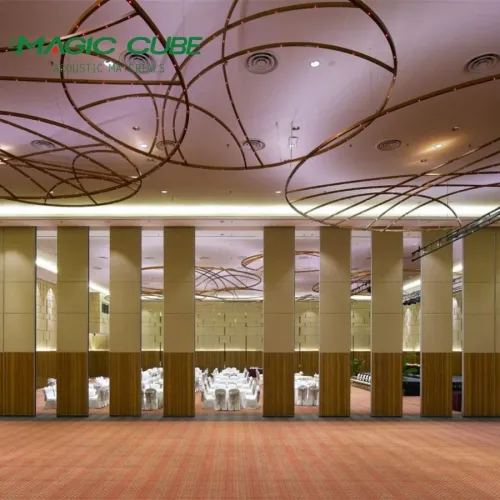

As the name suggests, the ultra-high-type detachable partition wall is used in general large banquet halls or conference centers. The height of the ceiling is relatively high, usually as high as 8 meters or even 12 meters, and it will reach a height of 15 meters. This ultra-high type movable partition wall is selected for the use of the so-called multi-functional hall.

In such a high place, the door panel will be much heavier than the door panel of the folding partition wall, which means that the partition used is completely hung on the steel structure, and the structure of the ceiling needs to bear the weight of tons or even more than ten tons. The material selection and installation requirements for the steel frame are very high.

Generally, the structure of the house is more complex, the conventional concrete steel structure, tennis steel structure or simple structure, etc., for different

For the housing structure, professional designers need to investigate the site and then make a professional steel frame installation plan. With our many years of experience, we will definitely work out the most suitable installation solution for you.

In order to avoid the result of failure after installing the steel frame, it is necessary to focus on the span of the steel frame when formulating the plan, and the specification of the steel to measure the load-bearing value. These factors are indispensable, otherwise, the installation of the steel frame will fail.

Features:

1. The height of the partition door is sometimes as high as 15 meters. When people push the partition door, the height that can be reached by the human hand is limited. Even such a high partition wall door can use the movable partition wall smoothly by relying on the strength of one person.

2. In order to better meet the customization requirements of each customer, our door has experienced professional designers to design construction plans for customers, combining the colors and styles selected by customers and the data that have been measured on the customer site and the needs of customers. Integrate and summarize ZAAI to design a construction plan that satisfies the customer.
