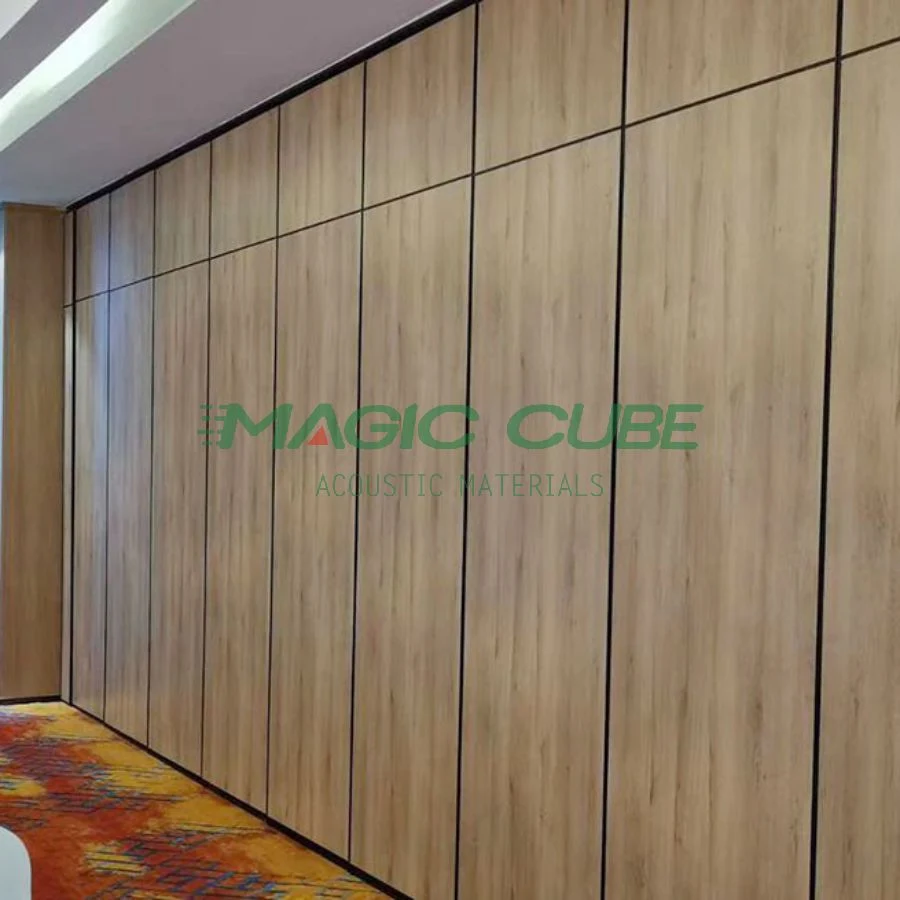

Frame surface office partition walls with doors

$89.99 - 129.99 /Square Meter
Payment Type:
T/T
Incoterm:
FOB,CIF,EXW
Min. Order:
1 Square Meter
Transportation:
Ocean
Port:
GUANGZHOU,SHENZHEN
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement

Engineering Solution CapabilityTotal Solution For Projects

Application ScenarioHotel, Villa, Hall, Gym, Mall, Office Building, Home Office, Home Bar

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric

ApplicationOffice, Hotel Banquet Hall, etc.

Main MaterialAluminum Frame and Track

Soundproof MaterRock Rool , Glass Wool

Soundproof Stc40dB-50dB

DimensionsW700-1200mm, H2000-5200mm, Thickness 80-110mm

Stacking WayCentre Partiting; Side Parking

Open WaySliding Partition

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortGUANGZHOU,SHENZHEN

Payment TypeT/T

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

A good hotel will also have a good movable partition wall, the Moveable Wall is very important, and the partition installation system next door is required for partition installation, which is convenient and accurate. The method is simple, the environment after installation is clean, and there is no remaining garbage.

The ultra-high Moveable Wall can be up to 16 meters, and the ultra-high movable partition wall brings a lot of convenience to people's work.



Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure


Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office
Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office

Ultra high 100 type

    Ultra-high Moveable Partition Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Moveable Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office

Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office

Stacking Ways

Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or OfficeApplications

Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office
Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office
Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office
Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office


Automatic Room Dividers Movable Partition Wall Motorized Sliding Walls for Meeting Room or Office

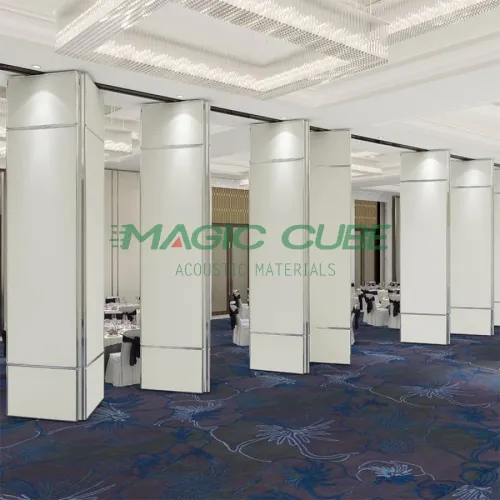

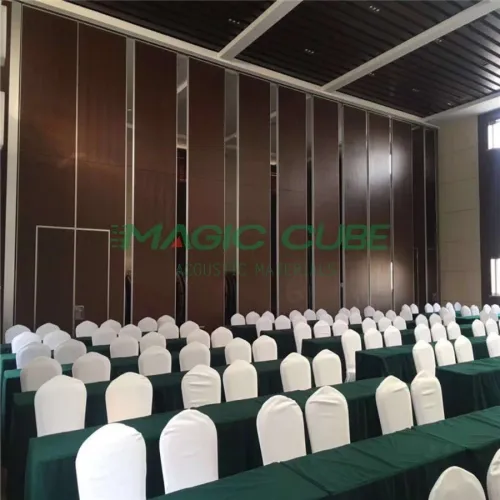

The Movable Partition Wall divides a large space into various functional spaces that need to be used. The difference between the ultra-high movable partition partition and the ordinary movable partition partition is that the partition wall is heavier, and usually the super-large hotel is used for the partition. Building space for banquet halls and airports. Because of the large-scale acting, so you need to use your vision in style design. For better results, you can point out four suggestions:



1. Anti-personality

It must be consistent with the overall style of the hotel, and the hotel space must establish a prominent personality. By dynamically studying the differences, making full use of the personality and its cultural habits with different elements, the style will be changed. Hilarious and fun private cubicle.

2. Advocating nature

Social style protection, environmental protection at the same time, has become a consensus of consensus, and design activities at the same time show this broad attitude to the crowd from a wide range of people. Peace and coexistence.

3. People-oriented

When choosing the Movable Partition Wall of the hotel, it is necessary to use fresh wallpaper as a decorative surface or a glass partition with better light transmittance to adjust people's psychological depression, and adjust the mentality through the decoration of the movable partition through the indoor environment, so as to maintain a good attitude in this way. This is also the basic foothold for the hotel to adopt activity partitions.

4. Artistry and themes

The combination of the two is the guarantee of the quality of the hotel space. The theme of the hotel space decoration design should be able to combine both local themes and local historical and cultural characteristics. For example, local seaside features are used in the interior environment design and decoration of seaside hotels. The interior space can be designed with common decoration materials such as stone pillars and wooden houses. The eye-catching place is a welcome activity partition with a classical charm. You can also make full use of technology and waterproofing to find design ideas, but it must be consistent with the overall atmosphere of the hotel.
