decorative wall wooden flexible partition wall systems

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement, Other

Engineering Solution CapabilityTotal Solution For Projects, Others

Application ScenarioHotel, Hall, Gym, Mall, Office Building, Home Office, Home Bar, Workshop

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian, Mediterranean

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric

ApplicationOffice, Hotel Banquet Hall, etc.

Main MaterialAluminum Frame and Track

Soundproof MaterRock Rool , Glass Wool

Soundproof Stc40dB-50dB

DimensionsW700-1200mm, H, Thickness 80-110mmkongbugushi

Stacking WayCentre Partiting; Side Parking

Open WaySliding Partition

Ransport PackageCarton Paper Packaging, MDF Batten Cover Corners

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortSHENZHEN,GUANGZHOU

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

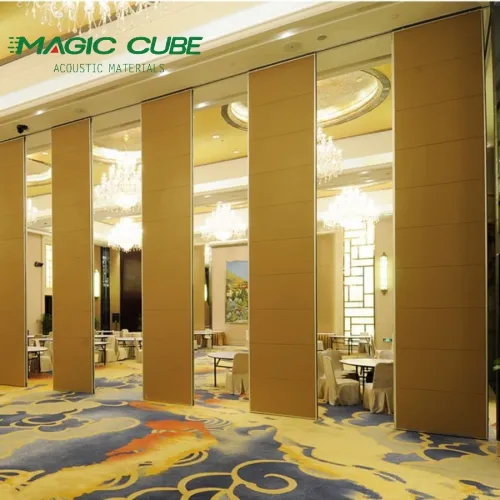

 Often used in high-end and spacious hotel lobbies, the divisions movable walls makes use of such a noble and atmospheric indoor space and becomes a hotel lobby with practical functions. Therefore, some hotel Moveable Wall spaces will be given multiple functions to meet the different gathering needs of the owner, and the space divided by the divisions Moveable Wall will be used more effectively.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure


Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium
Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium

Ultra high 100 type

    Ultra-high Movable Wall ,Moveable Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Movable Wall ,Moveable Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium

Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium

Stacking Ways

Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and StadiumApplications

Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium
Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium
Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium
Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium


Acoustic Folding Wooden Automatic Movable Acoustic Walls for Multi-Purpose Hall and Stadium

The hanging wheel of the Movable Partition Wall is made of PTFE material, which is super wear-resistant, corrosion-resistant, acid and alkali resistant. Each hanging wheel is composed of two wheels with reinforced steel rings. It glides smoothly and smoothly on the track, and the gliding process is silent and noiseless.

Each partition will be equipped with one or two hanging wheels, which are equipped with delicate bearings, which can make smooth turns at 90 degrees, 180 degrees, 360 degrees and other specific angles without the need for steering gear. The retractor in the partition can be moved up and down by shaking hands, and each partition wall can also be fixed individually. Each partition wall is equipped with a fast expansion and sealing system, which makes the partition fast and is called a solid wall. , Shake the joystick to make the P1 board extend up and down, left and right, and the P2 board extend up and down, thus forming a complete partition wall.

The interior space of traditional banquet halls is simple and monotonous, and is usually mainly characterized by a bright, spacious and bright style. Because of its relatively single use, it is generally used for large-scale banquets and individual meals. However, after the simple transformation of the movable partition wall of the restaurant, the spatial form and use effect of the banquet hall will be completely different. The movable partition wall gives the banquet hall space flexible and changeable characteristics, making the hall more widely used and can receive more forms and scales of banquets. The multi-functional use effect of banquet halls is getting stronger and stronger, which is all due to the flexible and simple advantages of movable partition walls. In fact, this is because the hotel movable partition wall has the ability to change the size of the space at any time.

The Movable Partition Wall can also be called a folding screen, because it can be folded, moved and pushed and pulled, hence the name. Because the movable partition wall is mainly in the form of hanging and hanging, it will not occupy the ground space, and there is no need to install tracks on the floor.

This kind of hotel activity partition is highly usable, and its design is the integration of parts. This is to make it easier to combine, so its combination is very strong, and it can be reused, which not only reduces the cost of customers Cost, but also play a role in environmental protection, energy saving and so on.
