Sound insulation operable wall partition for hall

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Main ApplicationCommercial Furniture

Types OfOffice Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce)Y

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity 5000sq/Month

TransportationOcean

Place of OriginChina

Supply Ability5000sq/Month

CertificateCE

HS Code 76101000

Payment TypeT/T

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners

Product Description

    Folding Partition Walls is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The Folding Partition Walls brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.

Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing


Product Structure


Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls
Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls

Ultra high 100 type

    Ultra-high detachable partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls

Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls

Stacking Ways

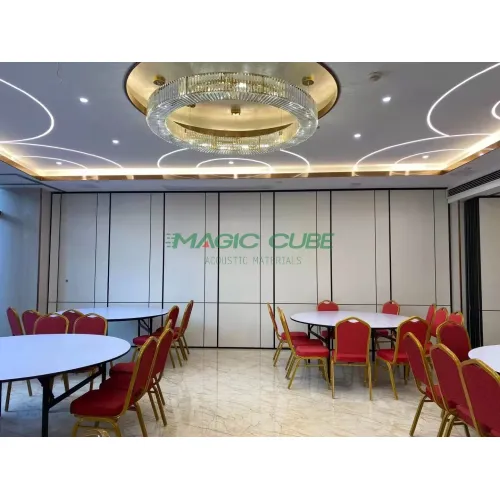

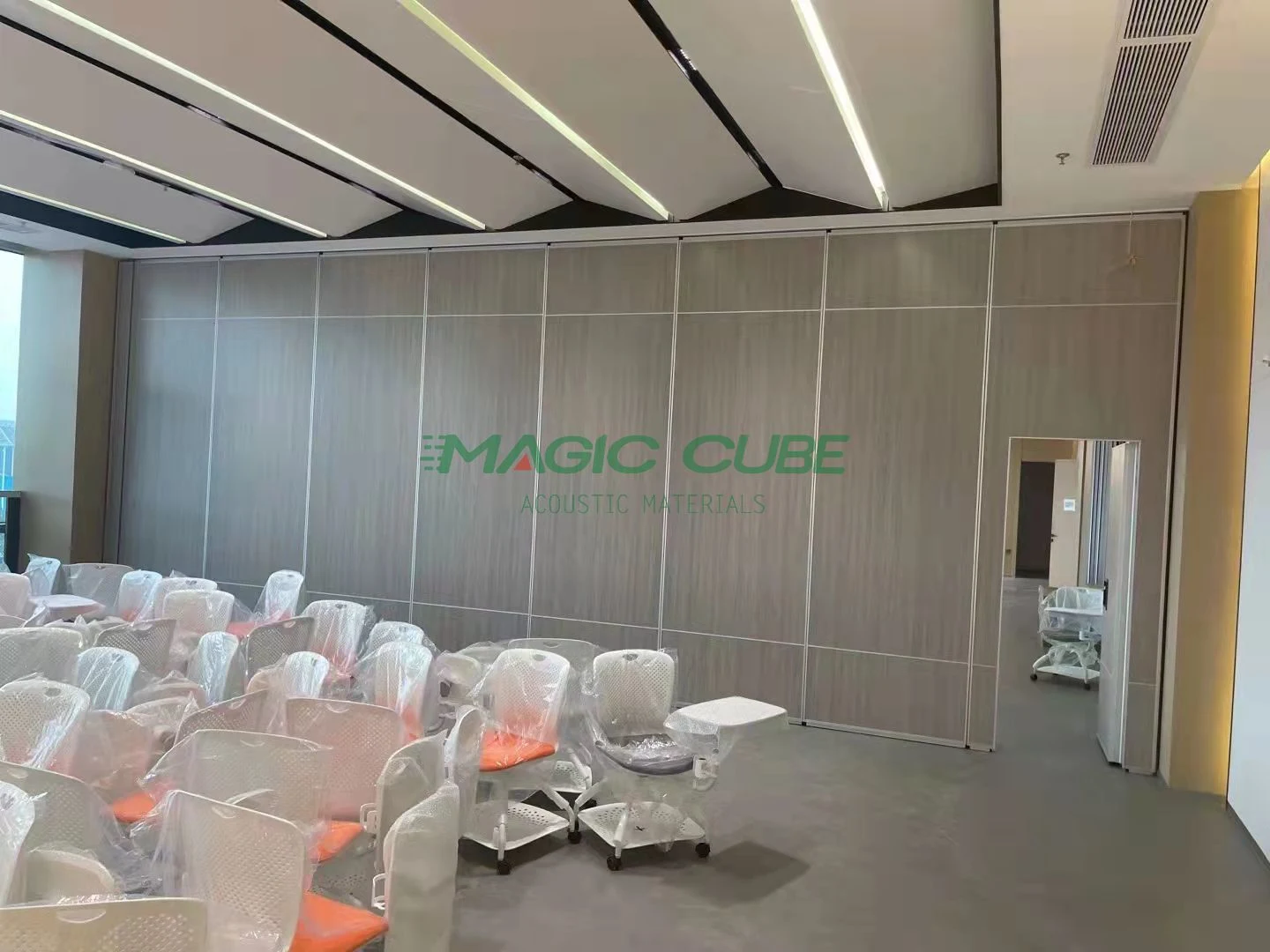

Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall WallsApplications

Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls
Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls
Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls
Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls


Acoustic Folding Wooden Movable Sliding Doors Office Divider Movable Movable Hall Walls

The commonly used hotel movable partitions have a high enough Sound Insulation coefficient, but in order to meet customers with stronger sound insulation effects, we need to strengthen the sound insulation materials when making partitions.

Ways to improve sound insulation

If a partition product wants to obtain high-quality Detachable Partition Wall, it cannot just focus on the improvement of thickness. Because it also needs to combine the density of the material, the sound absorption energy, the method of sound insulation treatment and the degree of fit. Mainly a few more points:

1. The material of the movable partition sound insulation cotton used in the hotel banquet hall needs to have strong sound absorption performance, moderate density, and absorb audio at the reflection angle to reduce the decibel effect;

2. The partition profiles must be precise in technology, horizontal and vertical, without special protrusions and asymmetry, to ensure that the movable partition can ensure the airtightness when combining partition walls, so as to achieve better noise reduction effect.

3. The material inside the movable clapboard is made of double-layer sound insulation cotton, which is a better sound insulation material, which can effectively isolate noises such as normal speech and humming.

4. The internal materials should be precisely matched, and the sound insulation material should preferably be taken from pure natural materials. Because it is a sealed space, more attention should be paid to the internal materials.

5. For those who need to pursue higher air tightness, in addition to the movable partition, it is necessary to set up soundproof curtains or other soundproof furniture;

6. The movable partition is not made of ordinary medium-density board, and needs to use sound-absorbing board or special flame-retardant cloth.

The reason for the aging of the partition

The Acoustic Folding Wall of the hotel banquet hall has the characteristics of strong sound insulation, fire prevention, portability and easy operation. This movable partition is especially suitable for space separation in hotel banquet halls, high-end office meeting rooms, high-end restaurant private rooms and other places. Most people will encounter the aging of movable partitions, but it is difficult to find the reasons. Let me introduce to you the reasons why movable partitions usually age:

1. Long-term use

All long-term exposure to the air and the influence of water, light and high and low temperatures will cause aging. Therefore, hotels should consider strong corrosion resistance and durability when selecting raw materials for partitions.

2. If the fabric of the hotel partition is a fabric curtain, it may be due to human factors or natural fading or discoloration may occur. Because of this, the hotel customer service staff must be careful maintenance of such fabric partitions. And maintenance.

3. The effect of damage

Because the Acoustic Folding Wall is very easy to be damaged in the process of pushing and pulling, if there is some water seepage in the hotel, the surface of the partition will also cause erosion.
