highly efficient acoustic movable partition



Product Details

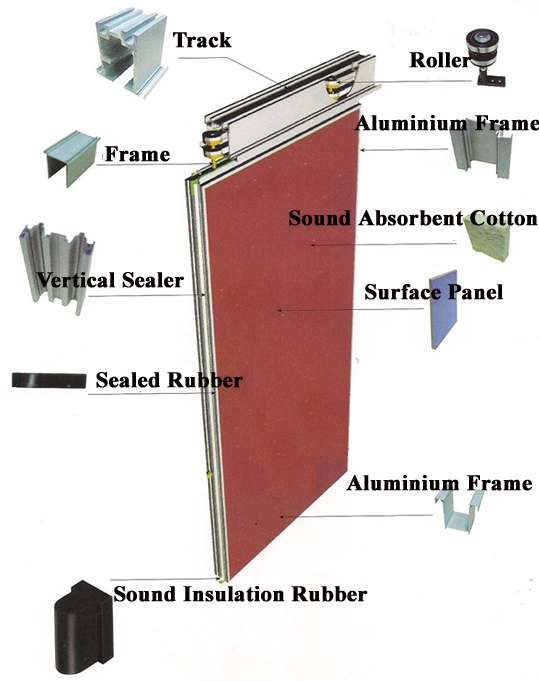

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

    Ultra-high soundproof partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

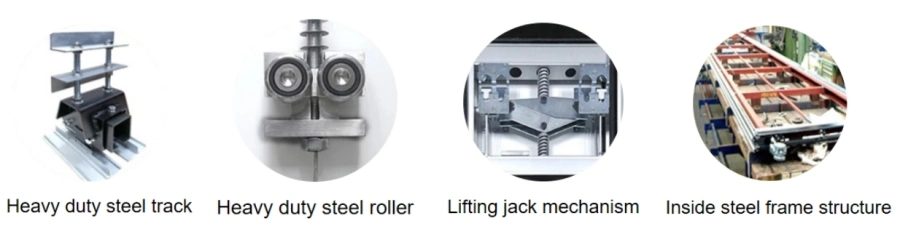

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

The middle of the operable moveable walls is made of Sound Insulation cotton and other materials, and the surrounding frame is made of aluminum alloy material, and the sound insulation effect is as high as 53dB coefficient, which can isolate the noise of ordinary speech.

1. Sound insulation materials

Additional sound insulation materials are sandwiched in the operable moveable walls to achieve different sound insulation effects.

2. Operating the crank

Manual operation of the crank is required to control the expansion and contraction of the sound insulation strip. The flexibility of the diamond-shaped connection bayonet in the crank makes the crank not easy to slide, and has strong flexibility and stability.

3. Partition door panel

The acoustic moveable wall is composed of aluminum alloy and melamine board. Such sturdy and hard-to-deform components provide the movable partition with great stability and high-strength sound insulation.

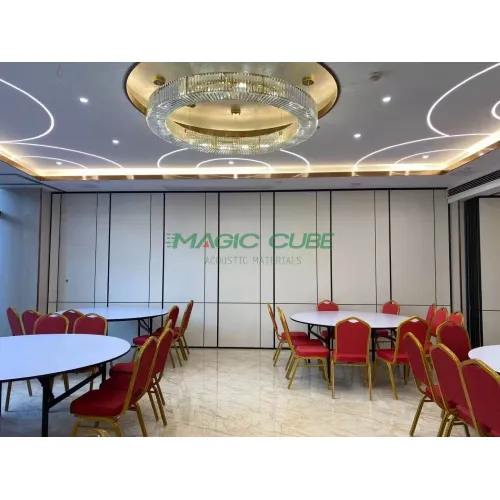

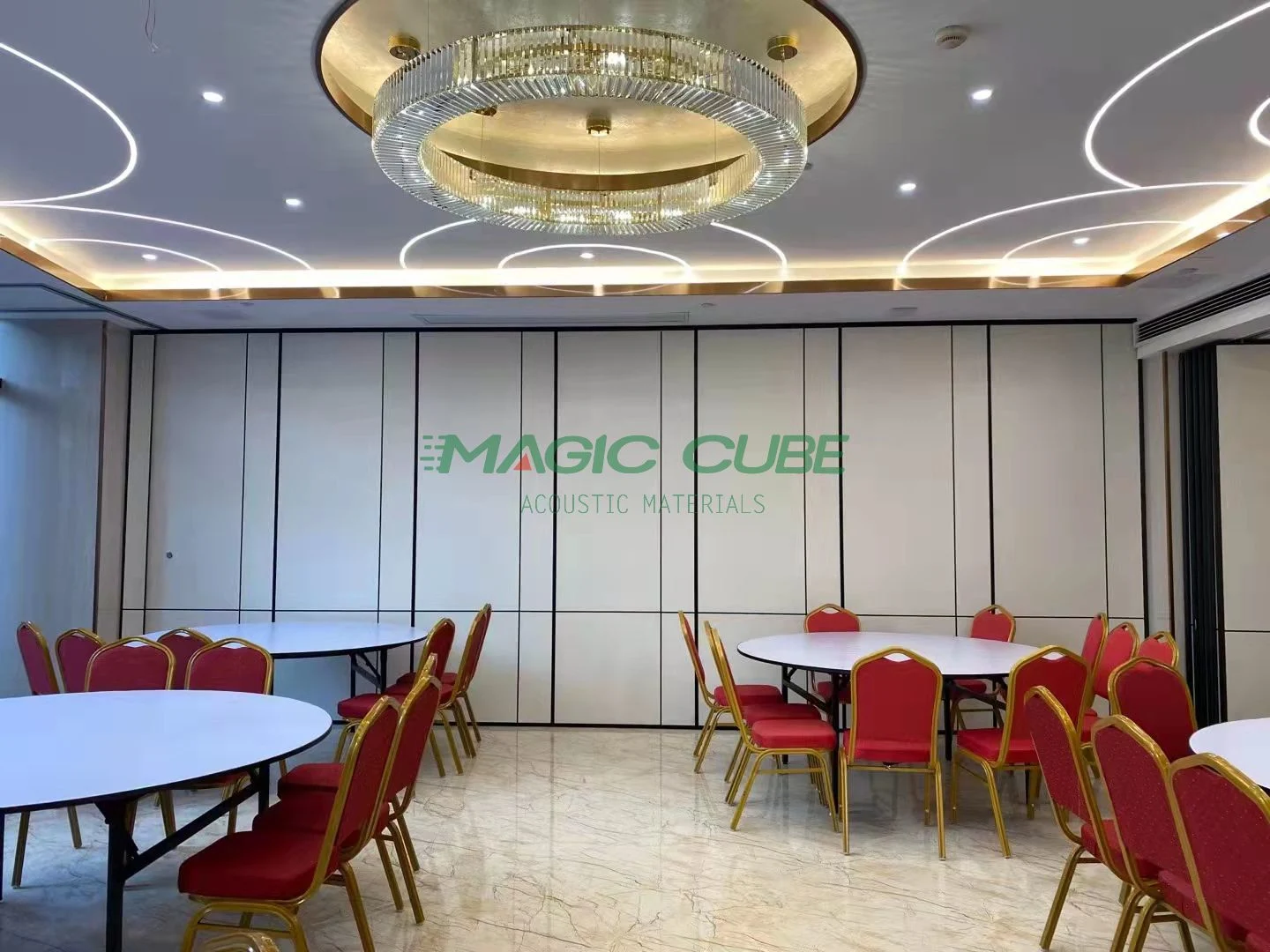

Because the acoustic moveable wall used in banquet halls and hotels has a strong sound insulation coefficient, it means that it can be divided into multiple rooms at the same time in the hall for different guests to use, and they will not be disturbed by unnecessary noise at all. Of course, when planning to set up partitions, it is also necessary to consider how to arrange safe passages if there are many rooms that need to be separated, so as to avoid unnecessary troubles.
