interior acrylic design moveable wall partitions

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandCE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement, Other

Engineering Solution CapabilityTotal Solution For Projects, Others

Application ScenarioHotel, Hall, Home Bar, Home Office, Office Building, Mall, Workshop

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric

DimensionsW700-1200mm, H2000-5200mm, Thickness 80-110mm

Stacking WayCentre Partiting; Side Parking

Open WaySliding Partition

Thickness65mm, 85mm, 100mm or 125mm

Height3500mm~16000mm

Retractable Range Of Top/Bottom Seals25 mm

Transport PackageExport Packing

Pro10000 Square Meters Per Yearduction Capacity

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateMAGIC CUBE

HS Code76101000

PortSHENZHEN,GUANGZHOU

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

Moveable Wall is now inseparable from people's lives. Whether it is home use, office use, or hotels and other spaces that require sound processing, they are all suitable for installing movable partition walls to meet people's needs for multi-functional use of space.

The biggest feature of the Moveable Wall is that it can be freely recombined into the required space. Most likely the installation was successful.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure


Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room
Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room

Ultra high 100 type

    Ultra-high Movable Partition Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Movable Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room

Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room

Stacking Ways

Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference RoomApplications

Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room
Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room
Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room
Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room


Acoustic Folding Wooden Movable Wooden Partitions for Office Meeting Room, Conference Room

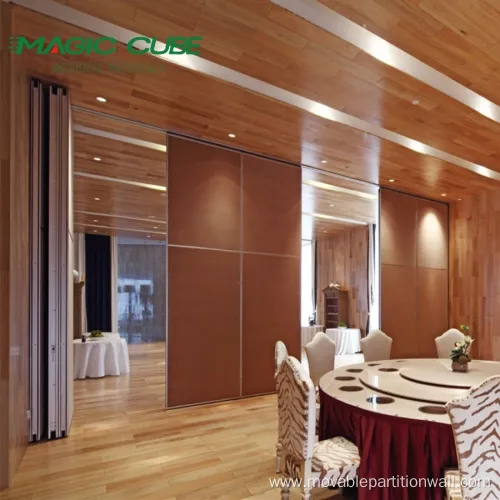

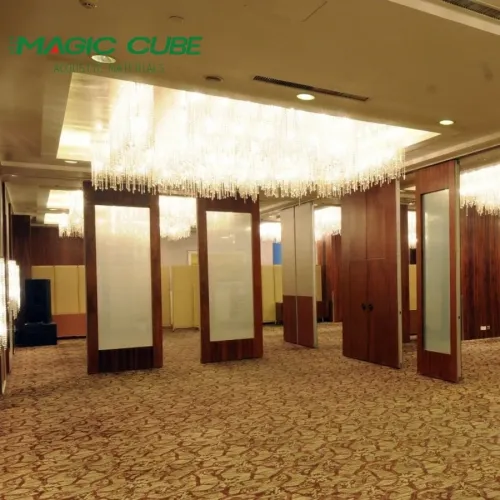

When installing the hotel event partition, you only need to set the personalized rail guide system on the ceiling of the banquet hall in advance. When you need to change the size of the banquet hall, then place these hotel banquet hall partition walls along the movable partition. The rails are pushed, and once they're all put together and locked in place, you've got a small banquet hall. When you need a small box, push and pull these movable partition walls along the rail system of another "box-building", and after the same operation, it can become a smaller space. If you want to restore it to a large banquet hall later, you only need to stack the movable partition walls of these banquet halls.

The hotel banquet hall event partition wall has a variety of finish options. Because of the different needs of customers, different venue spaces and the variety of finishes, each event partition is different and very personalized. In addition to traditional materials such as plate hard packs and cloth leather soft packs, there are also new technical materials such as 3D printing and inkjet printing, so it can fully show the unique charm of your products.

When installing a hotel movable partition wall, it is necessary to survey the surrounding environment and measure the size of the installation site to understand the overall environment and obtain the appropriate height and partition range. In order to make the partition and the scene form a strong consistency, more fashionable and good collocation, showing a strong coordinated visual effect.

Let's take a look at the characteristics of active partitions

Although the Movable Wall ,Moveable Wall is called "wall", it has the function of a general wall, but it is different from an ordinary wall. On the surface, the entire partition fan surface looks like a wall. In fact, it is composed of various components. The outer frame is made of aluminum alloy, which has strong stability and is not easy to be corroded. More usage requirements, support customer customization. In order to meet different usage requirements, it can be replaced with alloy materials that meet the properties to ensure a certain special purpose, and customized upgrades are recommended for a small number of environments with higher specifications.

Next, we will introduce the part of the fan surface. The "wall" body is made of various materials such as sound-absorbing cotton, so that it has the functions of Sound Insulation, heat insulation and energy saving. Communication of relevant performance, improve the sound insulation performance of the Movable Wall ,Moveable Wall. The customizability of the fan surface is also one of the remarkable characteristics of the movable partition. The surface can be decorated with various materials such as "soft package", "hard package" and "wood veneer" to enhance the visual perception and integrate it into the environment. , to promote elegant, high-end or classic interior space.
