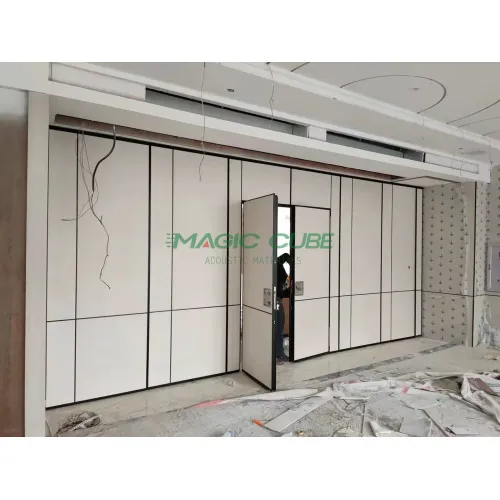

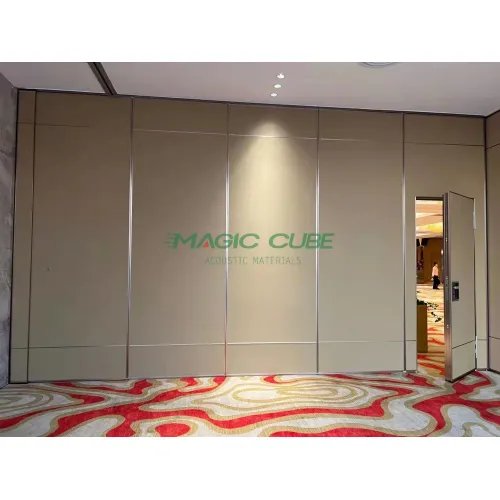

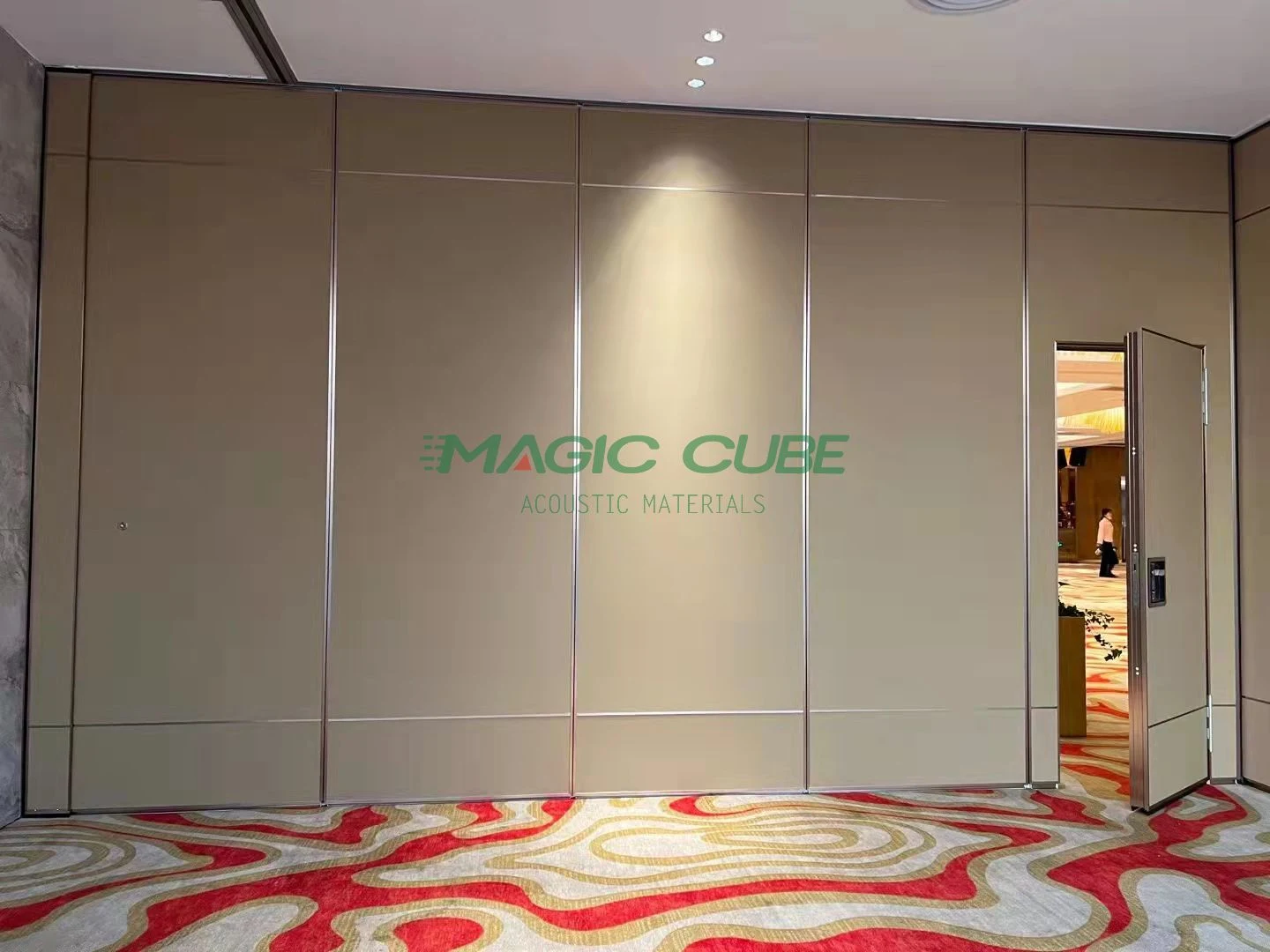

Acoustic wooden acoustic movable partition wall

$89.99 - 129.99 /Square Meter

Sound-absorbing board varieties:

Mobile Partitions dividers

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

Main Application: Commercial Furniture

Types Of: Office Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Payment Type: T/T,Others

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Square Meter

Package Type:: Carton Paper Packaging, MDF Batten Cover Corners

Product Description

acoustic sliding doors for hall is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The acoustic sliding doors for hall brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.

Specifications

Type	65 type, 80 type, 100 type, ultra high 100 type.
Finish	melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density	28~32kg/m²
STC	40db-50db
Dimensions	width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure	25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

Product Structure

Most Popular Customized Soundproof Acoustic Material Partition Wall for Classroom or Meeting Room

Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard

Most Popular Customized Soundproof Acoustic Material Partition Wall for Classroom or Meeting Room

Ultra high 100 type

Ultra-high partition mobile acoustic walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition mobile acoustic walls can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

Load bearing of each meter is more than 2000 KGS
Each pulley bearing more than 1500 KGS
Easily moved even being pushed at waist-high
The panel can make a turn automatically as sliding in the straight rail

Most Popular Customized Soundproof Acoustic Material Partition Wall for Classroom or Meeting Room

Stacking Ways

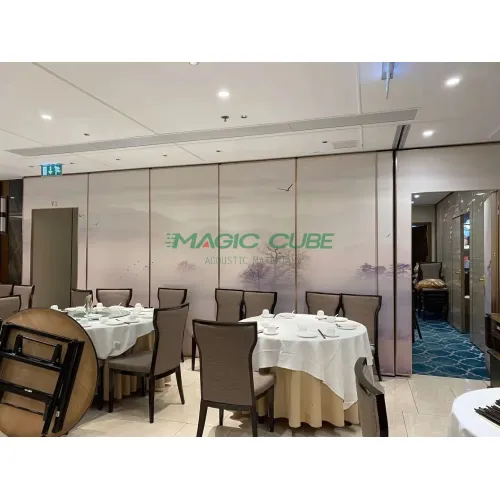

Applications

Most Popular Customized Soundproof Acoustic Material Partition Wall for Classroom or Meeting Room

Precautions：

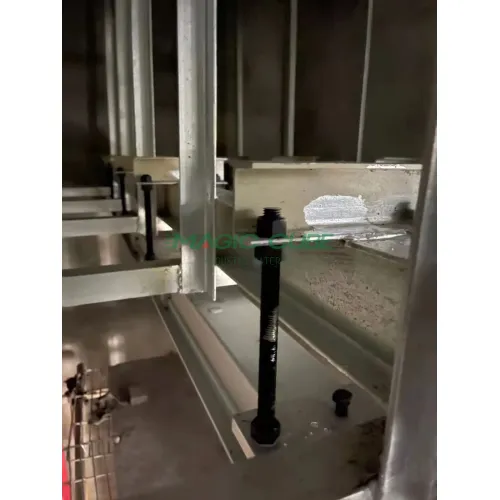

1. High-quality hanging wheels: The ultra-high type movable partition door panel is large and heavy. It must be a steel hanging wheel with a suitable type and bearing to ensure its safety.

2. Arc-shaped track: Ultra-high door panels generally require corners, and special customized arc-shaped corners need to be used. In order to ensure that the sliding door panel is smooth and easy to use, special customized steel elbows are required.

3. Hotel ultra-high-type partition storage: Ultra-high-type movable partition walls generally have storage rooms, and the panels need to be tilted during storage, so that it is easy to pick and place next time.

Storage method of ultra-high movable partition: The ultra-high movable partition wall generally has a storage room, which needs to be tilted for storage, which is convenient for next use and convenient access.

4. Regarding the storage room: The storage room should centrally store the door panels, and the bearing capacity is large, so special reinforcement is required when welding the rails to enhance safety.

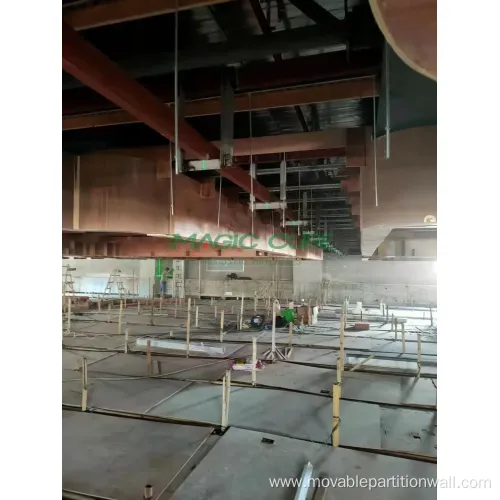

Installation of hotel sliding partition dividers

1. Before installing the partition, check the track parts according to the drawings to assemble the track in order.

2. Mark the track lines and place the brackets at specific locations.

3. The installation of the movable partition wall track should be against the ceiling.

4. Repeatedly check whether the movable partition wall is still firmly fixed on the track. The rails and brackets only need to be stored loosely in the storage area, which makes it easier to move the brackets and plates to other places.

Installation of movable partition wall matters 2

1. The hotel sliding partition dividers door panel is hung on the track, and the escape exit track can be removed without rebuilding the crane.

2. The escape and exit tracks must be connected with special-made bracket tracks.

3. When installing the track, the construction can only be started according to the latest accurate data measured.

Product Categories : Ultra-high Partition Wall
