Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement, Other
Engineering Solution Capability: Total Solution For Projects, Others
Application Scenario: Hotel, Office Building, Workshop, Home Office, Hall, Gym
Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian
Place Of Origin: China
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC Board, Fabric(Le
Main Material: Aluminum Frame and Track
Soundproof Stc: 40dB-50dB
Stacking Way: Centre Partiting; Side Parking
Transport Package: Carton Paper Packaging, MDF Batten Cover Corners
Surface: MDF Board, Fabric, Leather
Application: Office, Hotel Banquet Hall, etc.
Soundproof Mater: Rock Rool , Glass Wool
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANGZHOU
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
Product Description
The appearance of Moveable Partition Wall not only makes the hotel's decoration deficiencies, but also enhances the hotel's functionality and becomes a charming scenery of hotel decoration. The board of the Moveable Partition Wall is based on particleboard, and the surface is professionally processed by melamine. Now melamine panels are widely used as the main material of panel furniture, office furniture and kitchen furniture.
Specifications
Type | 65 type, 80 type, 100 type, ultra high 100 type. |
Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
Density | 28~32kg/m² |
STC | 40db-50db |
Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
Panel Suspension | Top hunge system without the need for a floor track. |
Panel Width | Each panel 600mm-1200mm. |
Track | Aluminum OR Steel Track |
Roller on panel | Single or double roller. |
Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
Module | 700mm - 1200mm maximum. |
Panel stacking | Numerous panel stacking options for complete flexibility. |
Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type

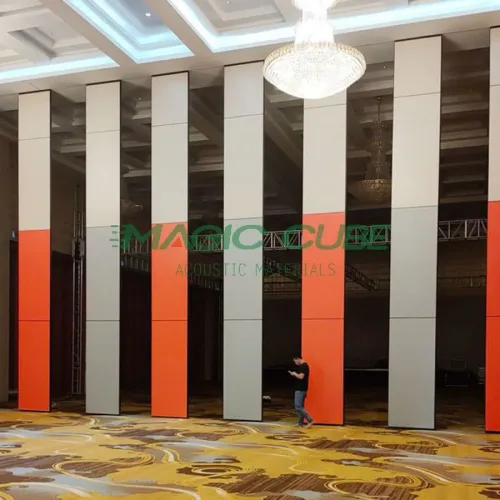

Ultra-high Moveable Partition Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Moveable Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
In order to avoid the result of failure after installing the steel frame, it is necessary to focus on the span of the steel frame when formulating the plan, and the specification of the steel to measure the load-bearing value. These factors are indispensable, otherwise, the installation of the steel frame will fail.
Features:
1. The height of the partition door is sometimes as high as 15 meters. When people push the partition door, the height that can be reached by the human hand is limited. Even such a high partition wall door can use the movable partition wall smoothly by relying on the strength of one person.
2. The material of the Moveable Wall door panel is smooth and not thorny, and it is easy to clean and wipe off the stains. Use a rag or a foldable long mop to simply wet the surface with clean water to wipe the dust and dirt on the surface. It is easy to wipe off with a light wipe.
3. The Ultra-high Partition Wall can not only prevent fire and heat insulation, but also has a Sound Insulation coefficient of up to 50dB, which means that it can isolate the voice of ordinary people. Someone is talking in a meeting next door. Automatically becomes smaller or even disappears inaudible.
4. Our ultra-high Moveable Wall door panels do not have wheels, and are driven entirely by the rails above the ceiling. This way no marks will be left on the floor.
5. In order to better meet the customization requirements of each customer, our door has experienced professional designers to design construction plans for customers, combining the colors and styles selected by customers and the data that have been measured on the customer site and the needs of customers. Integrate and summarize ZAAI to design a construction plan that satisfies the customer.
Product Categories : Moveable Divider Wall
