Hotel acoustic sound folding divider
  • Hotel acoustic sound folding divider
  • Hotel acoustic sound folding divider
  • Hotel acoustic sound folding divider
  • Hotel acoustic sound folding divider
  • Hotel acoustic sound folding divider
  • Hotel acoustic sound folding divider

Hotel acoustic sound folding divider

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

Warranty Service: 5 Years

After-sales Service: Online Technical Support, Return And Replacement

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hotel, Villa, Hall, Gym, Mall, Office Building, Home Office, Home Bar

Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese

Place Of Origin: China

Model NO.: series 85 partition walls

Color: Yellow

Certification: ISO9001

Material: Aluminum Frame and Track

Soundproof Mater: Rock Rool , Glass Wool

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Port: GUANGZHOU,SHENZHEN

Payment Type: T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

The Moveable Wall used in each place is completely different. The partition wall ordered in this place can only be used in this place, because the precise size data of the site size needs to be recorded before the Moveable Wall is made, and you can choose by yourself. Plates, finishes and colours. There are four types of our movable partition walls, 65 type, 80 type, 100 type and super high 100 type. Different types of partition walls are selected according to different places, and the thickness is customized according to the height and customer needs.




Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing


Product Structure


Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room
Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room

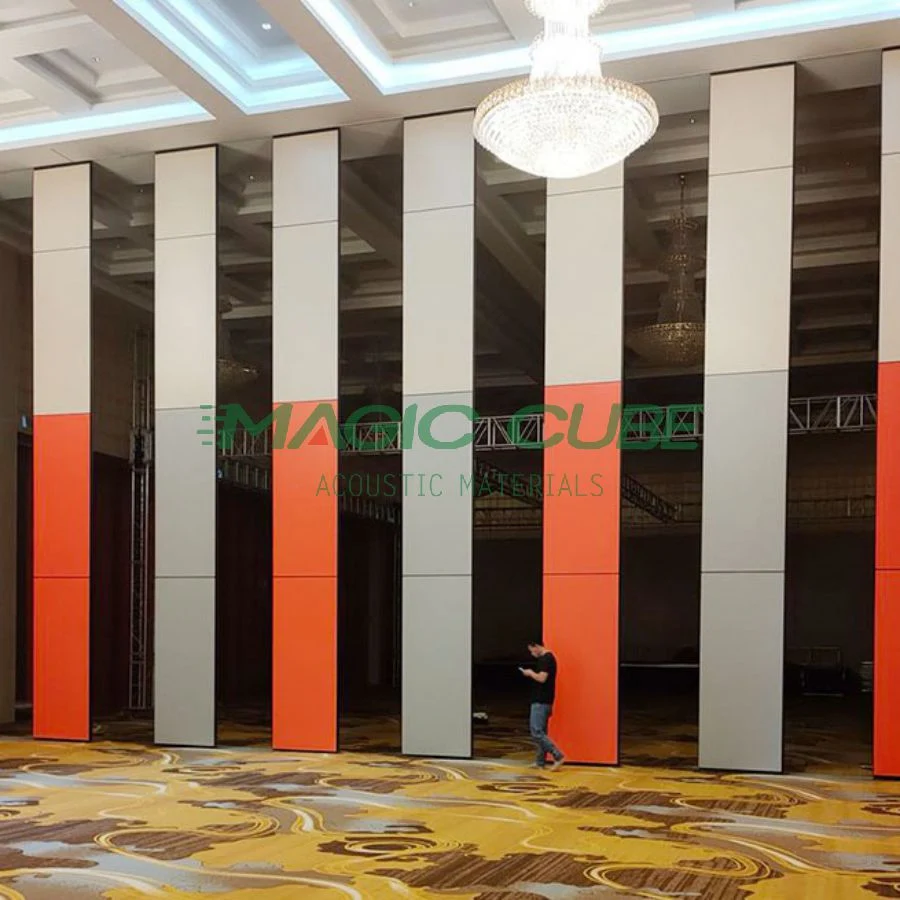

Ultra high 100 type

    Ultra-high Movable Partition Walln is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Movable Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room

Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room

Stacking Ways

Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting RoomApplications

Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room
Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room
Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room
Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room


Customization Movable Walls for Hall Movable Partition Walls for Hall for Office or Meeting Room

 Movable Wall ,Moveable Wall are just right in interior commercial design. When used in large business office buildings such as hotels, exhibition halls and banquet halls, they can not only play a role in separating space, but also improve the overall space design and grade. In the office areas such as the hotel conference room, the partitions are segregated in an orderly manner, and the partitions are serious and not old-fashioned. The materials can also ensure the characteristics of heat resistance and high Sound Insulation coefficient. The beautiful and fashionable appearance adds a lot to the overall environment of the hotel.



What kind of Movable Wall ,Moveable Wall can be called a super high partition?

Ultra-high type (standard height 9m-18m) can be called ultra-high partition, which is a movable partition wall system often used in many high-star hotels. Space, to achieve the effect of multiple uses in one hall without interfering with each other.

1. Installation track

Suspended track: The fixed way of the suspended guide is to install a pulley on the top surface of the partition door panel, which is connected to the track suspended from the ceiling. The type of track and pulley should be selected according to the size of the bearing weight. For heavy-duty movable partition walls, the rails are screwed or welded to the steel frame.

According to the specific weight of the track and the partition fan, install the pulley in advance and reserve the opening of the track.

2. Install the movable panel



According to the installation method, accurately draw the pulley line on each panel, and then fix the fixing frame of the pulley on the upper or lower stile of the partition fan with screws; then put the panels into the track one by one, and adjust each panel to be perpendicular to the The ground, and the push-pull rotation is flexible, and finally each fan is connected and fixed. Usually, the adjacent panels are connected by hinges
